ETFE vs Glass — Comparison for Large-Span Roofs
ETFE delivers up to about 95% daylight at roughly 1% of glass weight — trading rigid pane behaviour for tensile flexibility, faster install and different thermal and acoustic profiles.
Introduction
Technical Guide
Knowledge-Backed
Understanding ETFE vs Glass
A side-by-side comparison for large-span architecture: weight, light, maintenance, lifespan, seismic behaviour and design freedom — using typical industry comparisons, not universal guarantees.
Engineering overview
ETFE can transmit up to about 95% daylight at a fraction of glass weight, enabling lighter primary structure — with different acoustic and thermal behaviour.
Industry importance
Landmark stadiums, airports and malls often choose ETFE where span, weight and luminous quality outweigh rigid pane aesthetics.
Engineering
Comparing ETFE and Glazing for Large Spans
Qualitative comparison helps early design decisions — confirm project-specific test data before final specification.
Detailed explanation
ETFE is flexible and tensile; glass is rigid and heavier. Maintenance, replacement modularity and solar control strategies differ.
Working principle
System choice follows performance priorities: maximum transparency, thermal targets, acoustic comfort, fire strategy and structural economy.
Engineering concepts
Consider support structure cost, cleaning access, hail response, night-time appearance and long-term module replacement strategy.
Specifications
Side-by-Side Performance Indicators
Publish only values confirmed in knowledge docs. Use TBD where not approved.
| Parameter | Typical guidance | Notes |
|---|---|---|
| Weight | ETFE ~1% of glass area mass | Typical guidance |
| Light transmission | ETFE up to ~95%; glass ~80–90% | System dependent |
| Span flexibility | High for ETFE cushions | Glass heavier |
| Impact behaviour | Flexible tear resistant | Glass brittle |
| Maintenance | Lower cleaning typical | Site dependent |
| Structure cost | Often lower steel for ETFE | Project specific |
| Acoustics | Rain noise may need strategy | Glass varies by build-up |
| Fire rating | System & jurisdiction specific | No generic claim |
Values shown are typical or manufacturer-dependent. Confirm project-specific data sheets and tested assemblies before specification. AAKS does not publish uncertified U-values, fire ratings or warranty claims.
Design
Design Considerations
Design teams should integrate ETFE vs glass early with architecture, structure, MEP and façade consultants.
Planning
Establish performance priorities — daylight, thermal comfort, acoustics, fire, access — before fixing geometry. Early ETFE input improves cost and programme certainty.
Engineering
Load cases, foil patterning, clamp layouts and inflation schematics (if cushions) follow from planning decisions. Use verified manufacturer data for the chosen build-up.
Material selection
Film gauges, layer roles, optional print/frit and hardware alloys are selected for environmental exposure and maintainability — not generic catalogue defaults.
Installation requirements
Detailing must protect foils during construction, maintain drainage falls, and sequence inflation commissioning safely for cushion systems.
Benefits
Advantages
ETFE vs Glass supports lighter structures, faster installation and luminous interiors when engineered correctly.
Technical
Technical performance
Strong ETFE vs glass understanding helps teams leverage ETFE's high light transmission, weather durability and flexible form-making without overclaiming uncertified numbers.
Commercial
Commercial value
Reduced steel, faster programmes and lower cleaning burden can improve lifecycle economics — subject to project-specific engineering and local costs.
Long-term
Long-term resilience
Replaceable modules, typical 25–35+ year service-life guidance and stable UV behaviour support durable architectural identity when maintained.
Constraints
Limitations & Common Mistakes
Honest constraints around ETFE vs glass prevent specification errors and unsafe assumptions.
Challenges
Acoustic rain noise, thermal targets without layer strategy, pollution in low-rain climates, and access for inspection require explicit design responses.
Design constraints
Fire ratings, thermal values and hail performance are assembly-specific — never assume one material claim covers all jurisdictions or roof types.
Common mistakes
Common mistakes: late ETFE adoption, ignoring drainage, under-specifying maintenance access, or copying thicknesses from unrelated projects.
Delivery

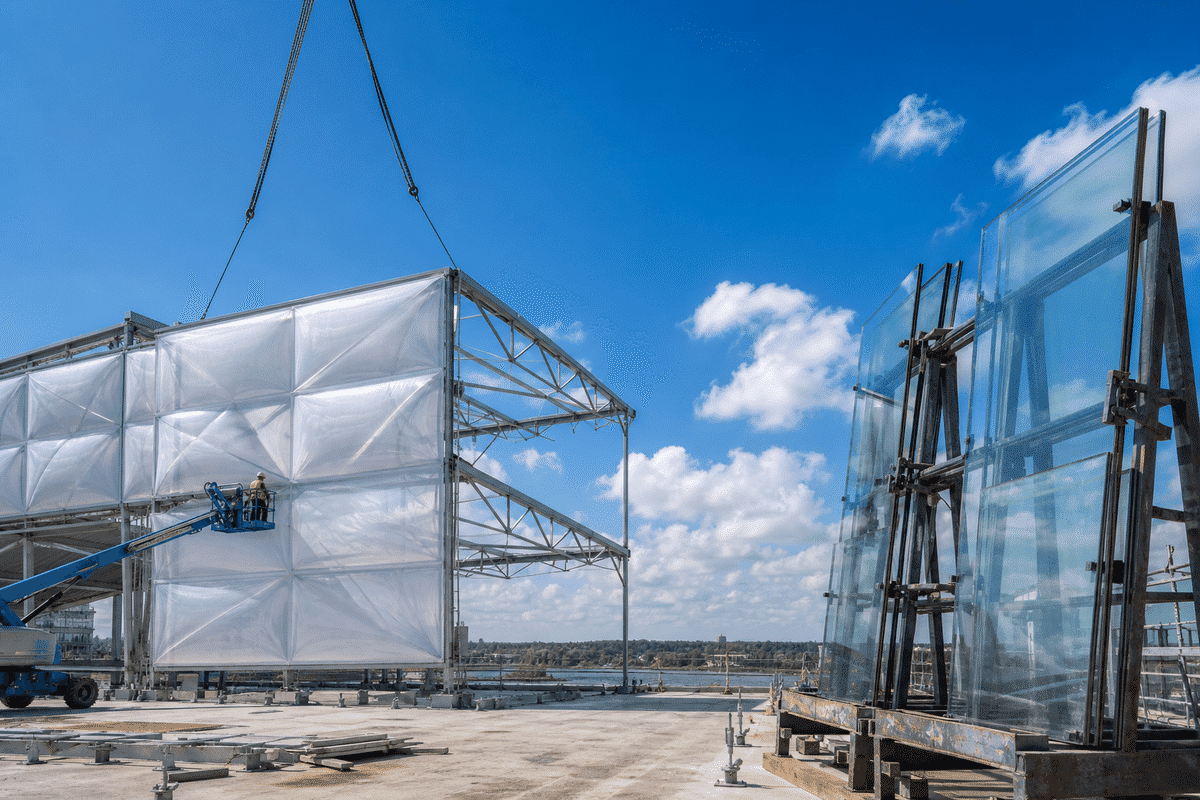

Installation Guidelines
Installation quality directly affects ETFE vs glass outcomes on site.
- 1
Structure readiness
Verify primary steel or cable net tolerances, fixings and interface substrates before membrane installation.
- 2
Module delivery
Receive cushions or foil panels with QA records; store protected from sharp objects and contamination.
- 3
Fixing & sealing
Install clamps, keders or frames per shop drawings; complete weather interfaces to adjacent trades.
- 4
Tension or inflation
Apply design tension to single-layer foil or inflate cushions to specified pressure under supervision.
- 5
Commissioning
Calibrate sensors, test redundancy and confirm alarm logic for inflation systems where applicable.
- 6
Handover
Deliver O&M documentation, cleaning guidance and inspection intervals aligned with this topic.
Engineering notes
Site teams must coordinate weather windows, fall protection and protection of installed foils until completion.
Best practices
Best practice: specialist installers, staged inspection of seams and clamps, and photographic records for warranty and maintenance files.
Care
Maintenance Guide
Maintenance preserves ETFE vs glass benefits across the service life of the envelope.
Inspection
Schedule visual inspections for soiling, seam integrity, clamp condition and inflation performance per O&M plan.
Cleaning
Clean when rain-wash is insufficient — use soft methods and approved detergents; avoid abrasive tools on film.
Repair
Assess punctures or loose edges promptly; modular cushions can often be repaired or replaced following protocols.
Maintenance schedule
Intervals depend on pollution, slope and access — typical reviews annually with more frequent checks after extreme weather.
Compliance
Industry Standards
Compliance for ETFE vs glass follows applicable local codes and verified system tests — AAKS supports documentation, not generic certification claims.
International standards
International material and fire test frameworks may apply depending on project jurisdiction — confirm with the engineer of record.
Codes
Structural wind and snow codes, fire regulations and accessibility requirements govern detailing alongside film selection.
Testing
Use manufacturer test reports for the specific cushion or foil assembly — not unrelated product lines.
Compliance guidance
AAKS aligns delivery with agreed specifications and provides typical guidance; certified values are issued per project when available.
Compare
ETFE vs Glass
Qualitative comparison for ETFE vs glass — confirm project-specific test data before specification.
| Criteria | ETFE | Glass |
|---|---|---|
| Weight | Very lightweight (~1% of glass) | Heavy; more steel |
| Light transmission | Up to ~95% | Typically ~80–90% |
| UV stability | Excellent; low yellowing | Excellent |
| Thermal (multi-layer) | Good in cushions | Good in IGU |
| Impact | Flexible; tear resistant | Brittle; can shatter |
| Maintenance | Self-cleaning tendency | Regular cleaning |
Products
Related Products
Link only to live product pages that apply to this topic.
Sectors
Related Applications
Map to sector clusters in knowledge/INTERNAL_LINKING_RULES.md.
Case studies
Related Projects
Library
Related Technical Articles
Sibling guides — replace tokens with live article paths when published.
Insights
Related Insights
Visuals
Technical Gallery
Unique visuals for this article only — do not reuse across pages.
FAQ
Frequently Asked Questions
Align answers with knowledge/FAQ.md and topic knowledge files.
How much lighter is ETFE than glass?
ETFE film is approximately 99% lighter than glass on area basis — roughly 0.3–1.0 kg/m² versus 25–30 kg/m² typical glass weight.
Which transmits more daylight?
ETFE is cited up to about 95% transmission; conventional glass often 80–90% in comparison tables — project-specific confirmation applies.
Is ETFE as strong as glass?
ETFE offers high tear resistance and flexibility; glass is strong but brittle and can shatter — different structural models apply.
Which lasts longer?
Glass may cite 30–50 years; ETFE often 25–35+ years — both depend on design, environment and maintenance.
Which installs faster?
ETFE installation is typically cited 3–5 times faster than glass with prefabricated modules — programme depends on project.
How does maintenance compare?
ETFE's self-cleaning surface lowers washing frequency versus glass in typical comparisons — site conditions still matter.
Which needs heavier structure?
Glass demands heavier steel and foundations; ETFE's lightness reduces structural tonnage in most large-span roofs.
How does thermal performance compare?
Multi-layer ETFE cushions offer excellent insulation qualitatively; double or triple glazing also performs well — compare tested assemblies.
Which suits curved freeform roofs?
ETFE excels on curved and pneumatic forms; glass is limited by weight and rigidity.
How does seismic performance compare?
ETFE's low mass often performs favourably versus heavy glazing — system detailing still required.
When might glass still be preferred?
Projects needing rigid acoustic barriers, specific fire-rated glazing assemblies or scratch-hard surfaces may retain glass in zones.
How do I choose for my project?
Share span, climate and aesthetic goals with AAKS via contact-us.html for system comparison.
