ETFE Material Properties — Physical & Mechanical Guide
Density near 1.7 g/cm³, high elongation and near-zero water uptake define ETFE as a tensile fluoropolymer — very different from brittle glazing on structural behaviour.
Introduction
Technical Guide
Knowledge-Backed
Understanding ETFE Material Properties
Reference the core physical and mechanical properties architects and engineers ask about: light transmission, UV stability, chemical resistance, temperature range and why manufacturer data sheets govern final specification.
Engineering overview
Engineers evaluate tensile strength, elongation, surface energy and thermal range when specifying ETFE for roofs, façades and cushions — always using manufacturer data sheets.
Industry importance

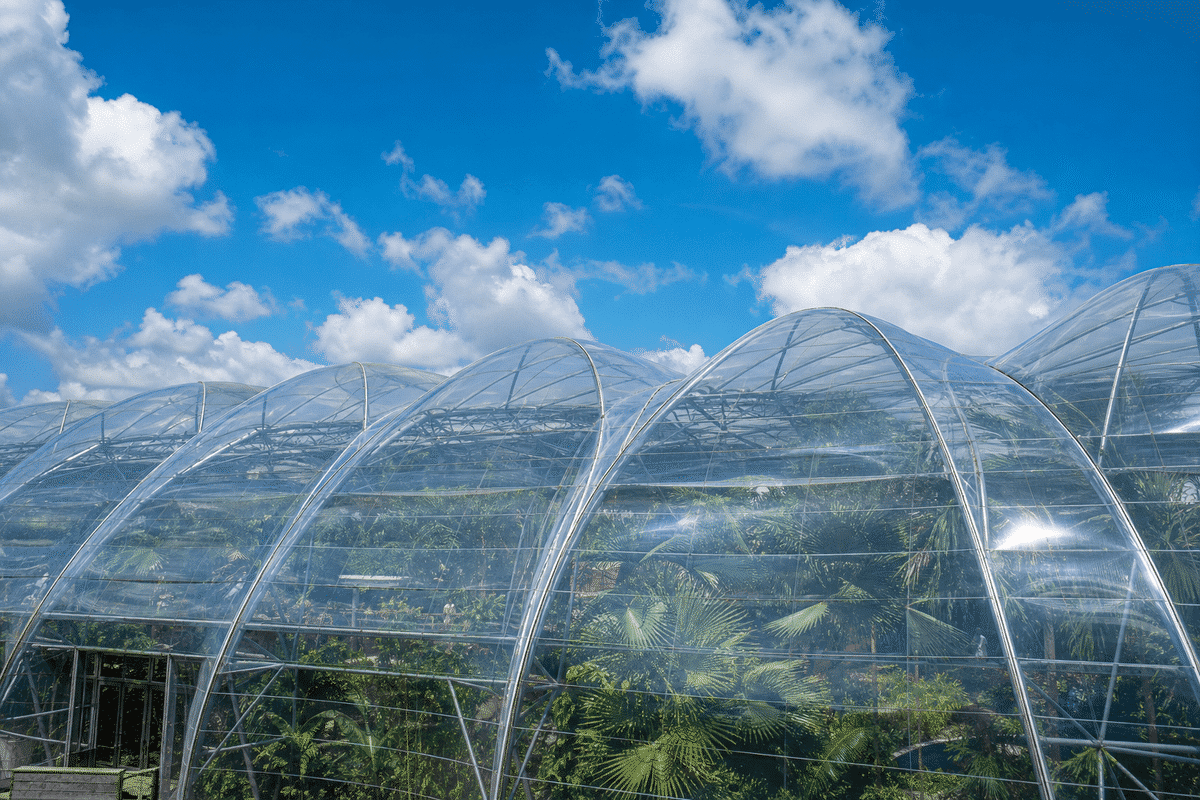

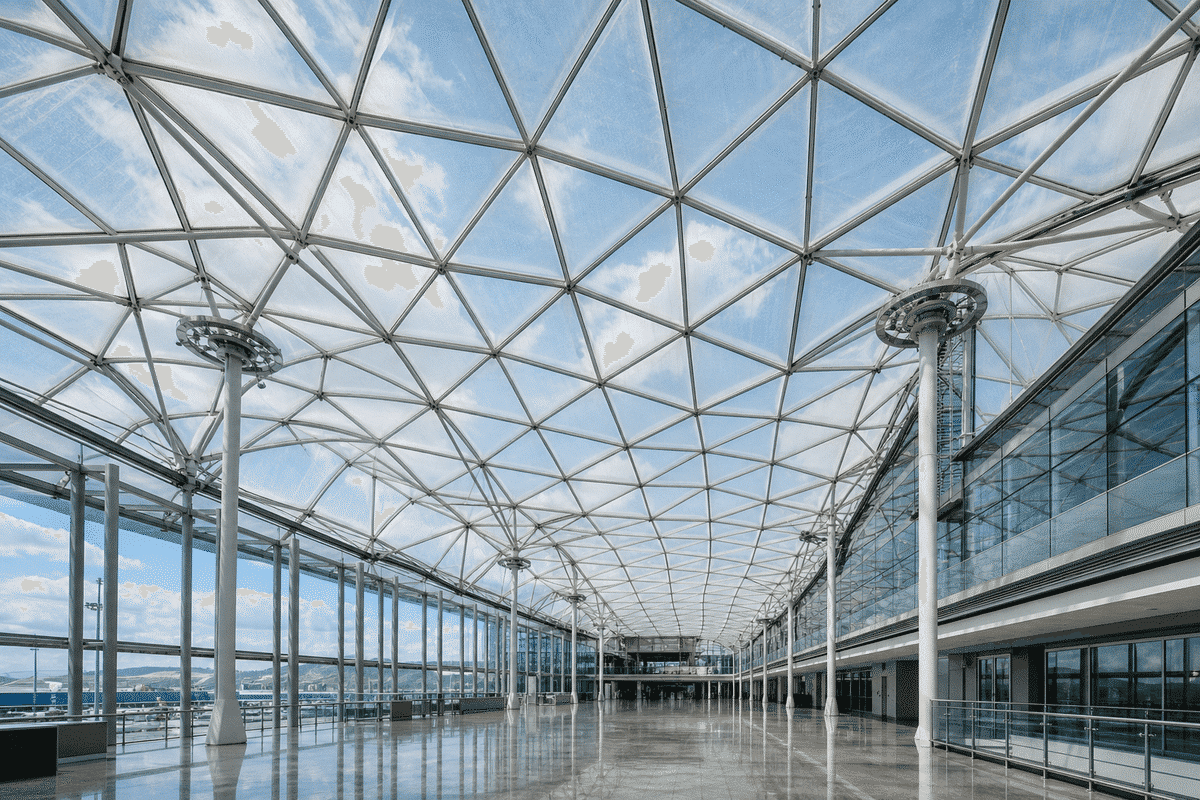

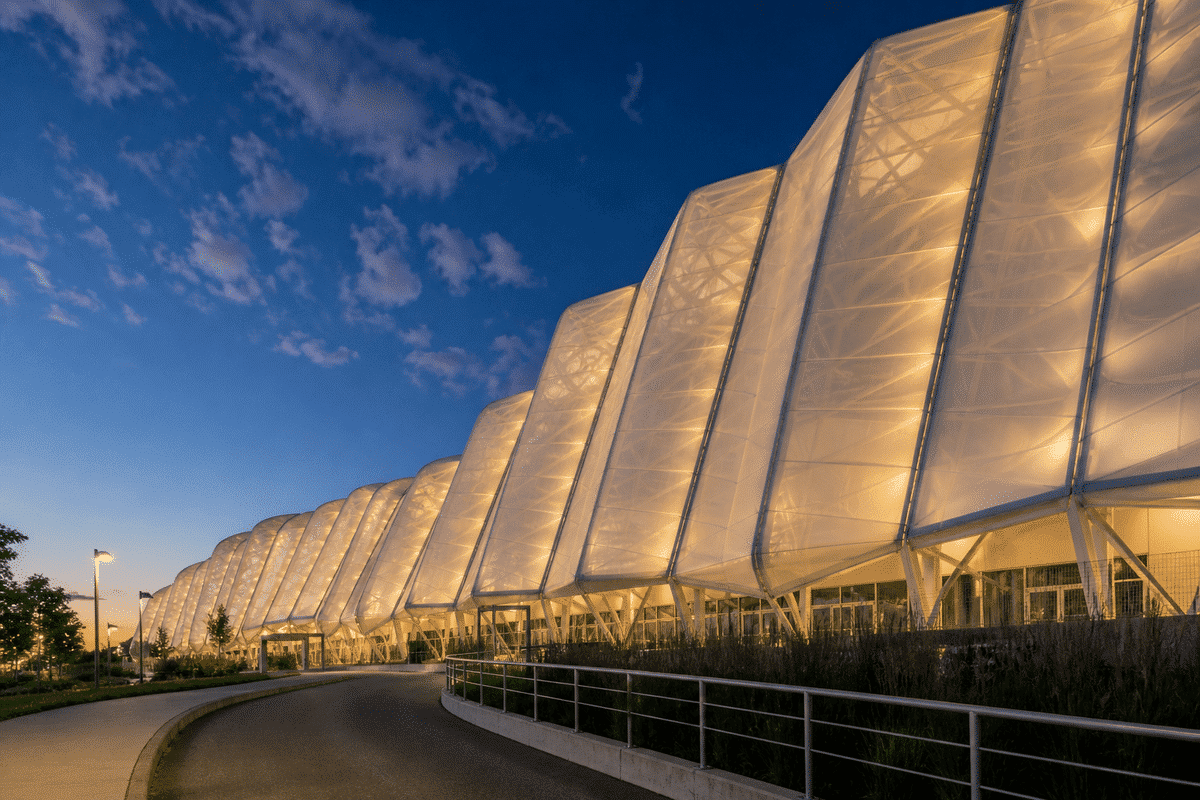

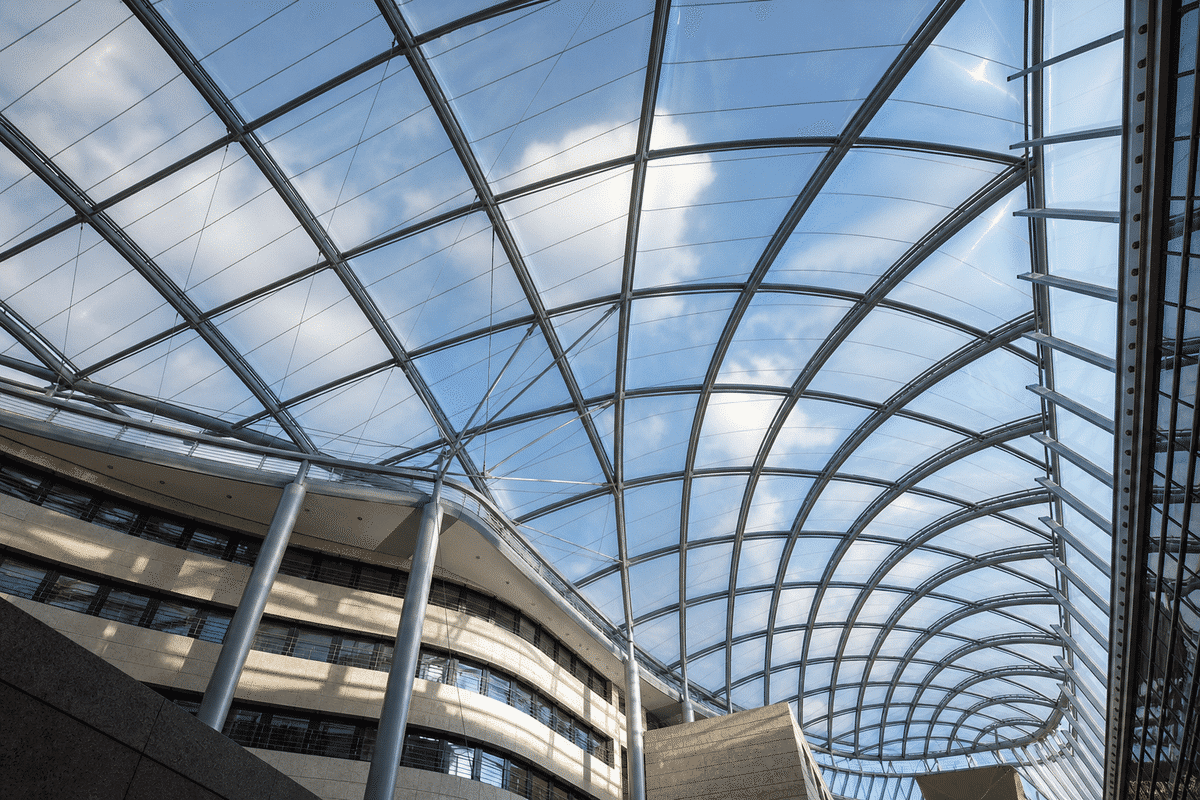

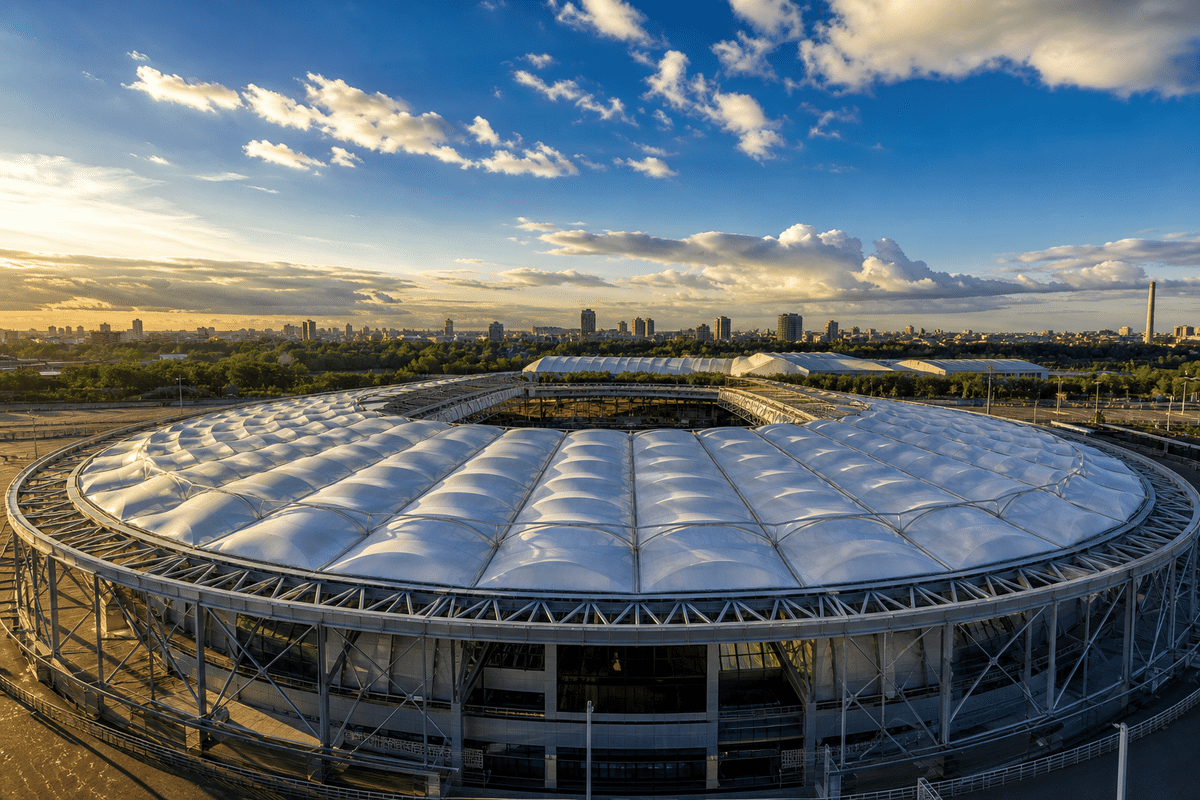

Material property data underpins stadium roofs, airport terminals, mall atria and greenhouse envelopes where lightweight daylighting is critical.
Engineering
Physical & Mechanical Behaviour of ETFE Film
From density and strength to UV stability and surface behaviour, ETFE material properties define how the membrane performs as a tensile envelope.
Detailed explanation
Typical density guidance is about 1.70–1.75 g/cm³ with nearly zero water absorption. Tensile strength is often quoted around 40–55 MPa depending on grade — confirm per project.
Working principle

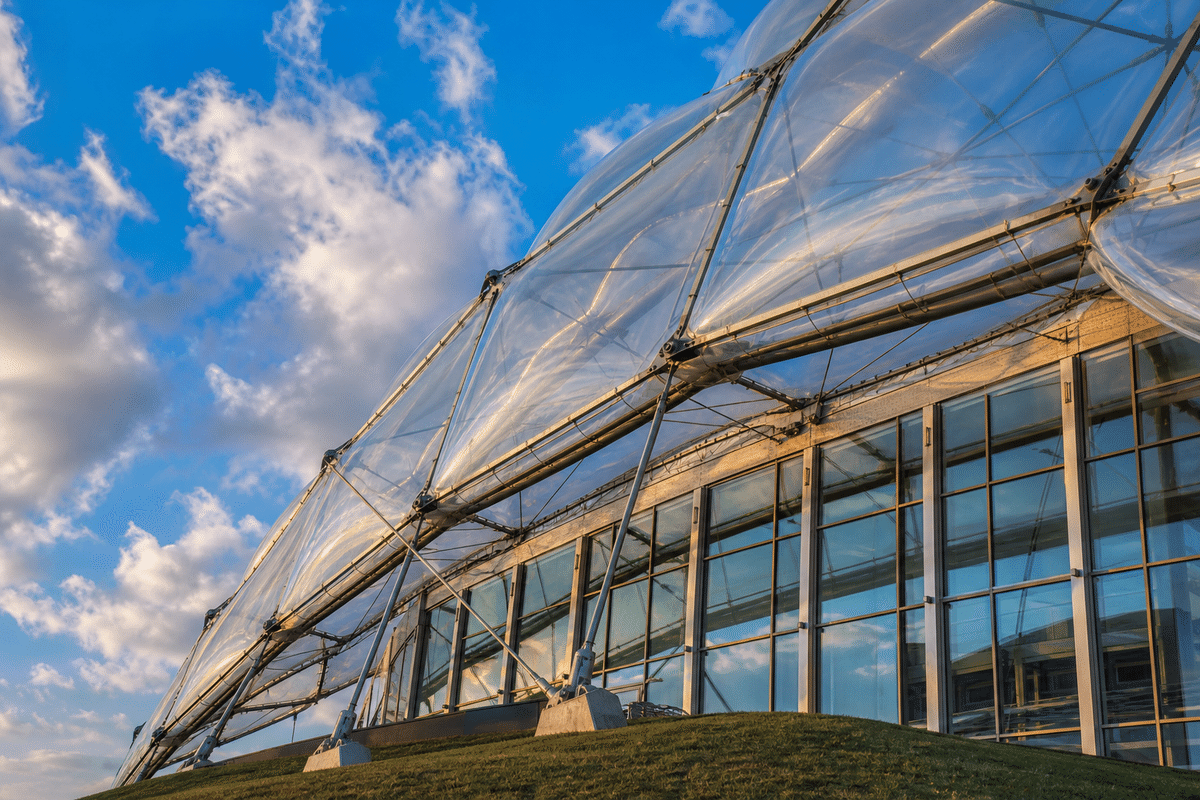

ETFE performs as a flexible tensile membrane rather than a rigid pane. Loads are carried through pretension, cushion pressure or cable-supported grids.
Engineering concepts
Key concepts include tear resistance, low surface energy for rain-wash, wide service temperature range, and replaceable modular cushions.
Specifications
Typical Material Parameters
Publish only values confirmed in knowledge docs. Use TBD where not approved.
| Parameter | Typical guidance | Notes |
|---|---|---|
| Material type | ETFE fluoropolymer film | Manufacturer grade varies |
| Typical density | About 1.70–1.75 g/cm³ | Typical / data sheet |
| Light transmission | Up to ~95% | Clear film; frit reduces |
| UV transmission | Often ~90–95% | Horticultural relevance |
| Service life guidance | Often 25–35+ years | Design & maintenance dependent |
| Working temperature | Wide range; approx. -200°C to +150°C | Architectural band narrower |
| Water absorption | Nearly zero | Waterproof when detailed |
| Tensile strength | Often ~40–55 MPa | Grade dependent |
Values shown are typical or manufacturer-dependent. Confirm project-specific data sheets and tested assemblies before specification. AAKS does not publish uncertified U-values, fire ratings or warranty claims.
Design
Design Considerations
Design teams should integrate ETFE material properties early with architecture, structure, MEP and façade consultants.
Planning
Establish performance priorities — daylight, thermal comfort, acoustics, fire, access — before fixing geometry. Early ETFE input improves cost and programme certainty.
Engineering
Load cases, foil patterning, clamp layouts and inflation schematics (if cushions) follow from planning decisions. Use verified manufacturer data for the chosen build-up.
Material selection
Film gauges, layer roles, optional print/frit and hardware alloys are selected for environmental exposure and maintainability — not generic catalogue defaults.
Installation requirements
Detailing must protect foils during construction, maintain drainage falls, and sequence inflation commissioning safely for cushion systems.
Benefits
Advantages
ETFE Material Properties supports lighter structures, faster installation and luminous interiors when engineered correctly.
Technical
Technical performance
Strong ETFE material properties understanding helps teams leverage ETFE's high light transmission, weather durability and flexible form-making without overclaiming uncertified numbers.
Commercial
Commercial value
Reduced steel, faster programmes and lower cleaning burden can improve lifecycle economics — subject to project-specific engineering and local costs.
Long-term
Long-term resilience
Replaceable modules, typical 25–35+ year service-life guidance and stable UV behaviour support durable architectural identity when maintained.
Constraints
Limitations & Common Mistakes
Honest constraints around ETFE material properties prevent specification errors and unsafe assumptions.
Challenges
Acoustic rain noise, thermal targets without layer strategy, pollution in low-rain climates, and access for inspection require explicit design responses.
Design constraints
Fire ratings, thermal values and hail performance are assembly-specific — never assume one material claim covers all jurisdictions or roof types.
Common mistakes
Common mistakes: late ETFE adoption, ignoring drainage, under-specifying maintenance access, or copying thicknesses from unrelated projects.
Delivery

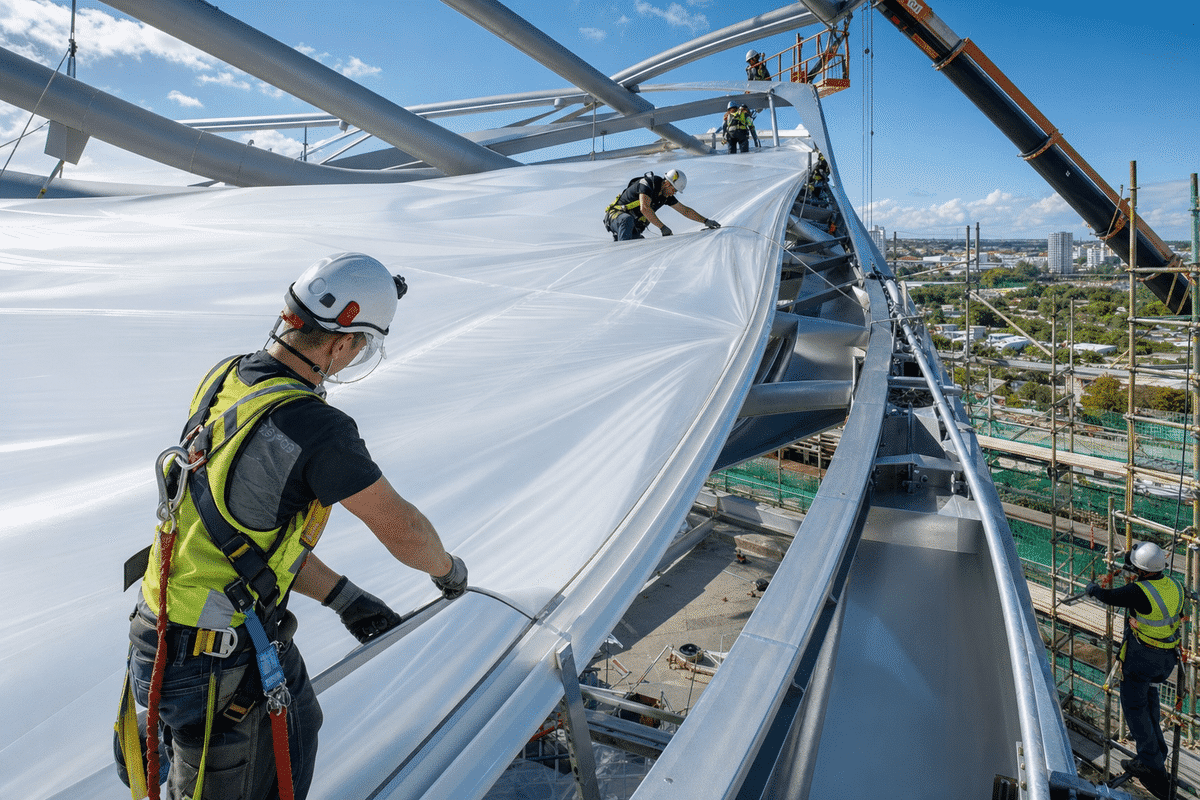

Installation Guidelines
Installation quality directly affects ETFE material properties outcomes on site.
- 1
Structure readiness
Verify primary steel or cable net tolerances, fixings and interface substrates before membrane installation.
- 2
Module delivery
Receive cushions or foil panels with QA records; store protected from sharp objects and contamination.
- 3
Fixing & sealing

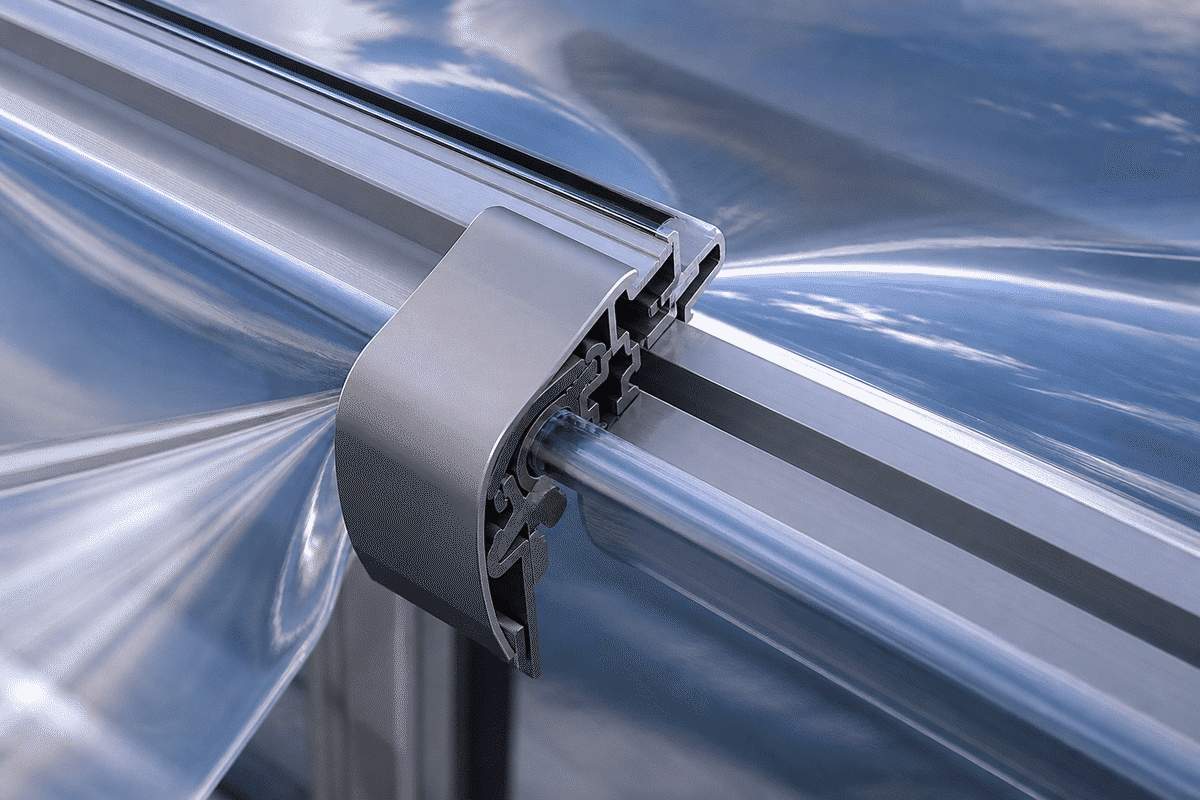

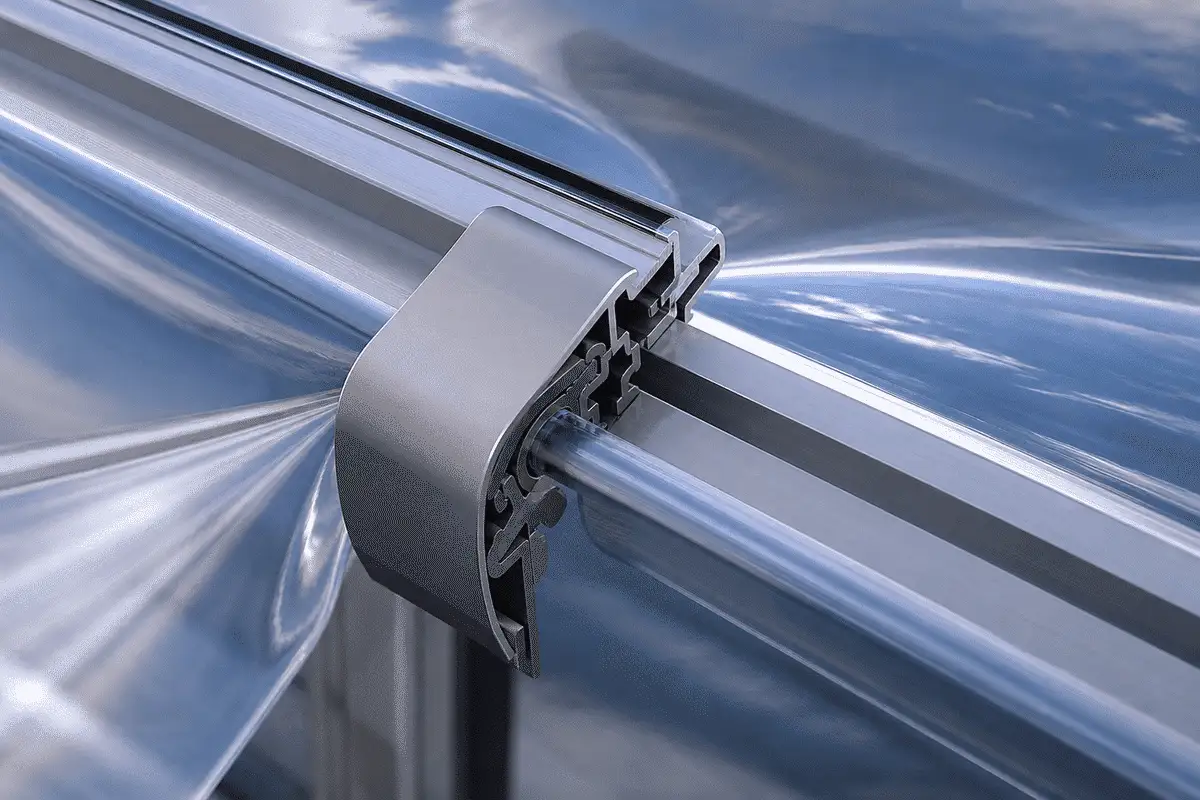

Install clamps, keders or frames per shop drawings; complete weather interfaces to adjacent trades.
- 4
Tension or inflation
Apply design tension to single-layer foil or inflate cushions to specified pressure under supervision.
- 5
Commissioning
Calibrate sensors, test redundancy and confirm alarm logic for inflation systems where applicable.
- 6
Handover
Deliver O&M documentation, cleaning guidance and inspection intervals aligned with this topic.
Engineering notes
Site teams must coordinate weather windows, fall protection and protection of installed foils until completion.
Best practices
Best practice: specialist installers, staged inspection of seams and clamps, and photographic records for warranty and maintenance files.
Care
Maintenance Guide
Maintenance preserves ETFE material properties benefits across the service life of the envelope.
Inspection
Schedule visual inspections for soiling, seam integrity, clamp condition and inflation performance per O&M plan.
Cleaning
Clean when rain-wash is insufficient — use soft methods and approved detergents; avoid abrasive tools on film.
Repair
Assess punctures or loose edges promptly; modular cushions can often be repaired or replaced following protocols.
Maintenance schedule
Intervals depend on pollution, slope and access — typical reviews annually with more frequent checks after extreme weather.
Compliance
Industry Standards
Compliance for ETFE material properties follows applicable local codes and verified system tests — AAKS supports documentation, not generic certification claims.
International standards
International material and fire test frameworks may apply depending on project jurisdiction — confirm with the engineer of record.
Codes
Structural wind and snow codes, fire regulations and accessibility requirements govern detailing alongside film selection.
Testing
Use manufacturer test reports for the specific cushion or foil assembly — not unrelated product lines.
Compliance guidance
AAKS aligns delivery with agreed specifications and provides typical guidance; certified values are issued per project when available.
Compare

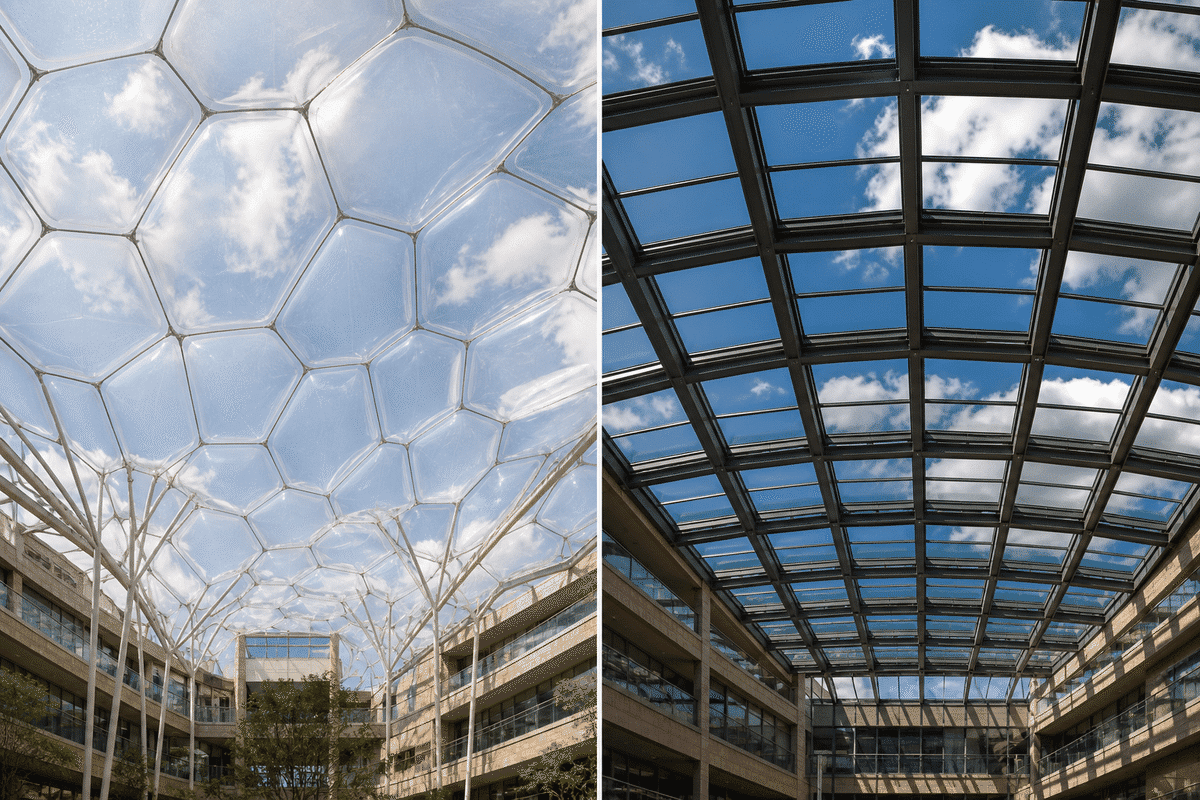

ETFE Film vs Typical Glass
Qualitative comparison for ETFE material properties — confirm project-specific test data before specification.
| Criteria | ETFE Film | Typical Glass |
|---|---|---|
| Weight | Very lightweight ETFE | Heavier alternative |
| Daylight | Up to ~95% transmission | Varies by material |
| Durability | Strong UV & weather typical | Material dependent |
| Structure demand | Lower steel typical | Higher mass support |
| Maintenance | Low typical; site dependent | Varies |
| Design flexibility | Freeform cushions | More constrained |
Products
Related Products
Link only to live product pages that apply to this topic.
Sectors
Related Applications
Map to sector clusters in knowledge/INTERNAL_LINKING_RULES.md.
Case studies
Related Projects
Library
Related Technical Articles
Sibling guides — replace tokens with live article paths when published.
Insights
Related Insights
Visuals
Technical Gallery
Unique visuals for this article only — do not reuse across pages.
FAQ
Frequently Asked Questions
Align answers with knowledge/FAQ.md and topic knowledge files.
What are the key physical properties of ETFE?
ETFE is a fluoropolymer film with very low density, high light transmission up to about 95%, excellent UV and weather resistance, and flexibility that supports large-span architectural forms. Typical values are manufacturer-dependent.
What is the density of ETFE film?
Typical density guidance is about 1.70–1.75 g/cm³ — far lighter than glass on a per-area basis for envelope applications.
How strong is ETFE compared with glass?
ETFE offers high tear resistance and flexibility rather than rigid compressive strength. It performs as a tensile membrane, not a brittle pane.
What is the typical elongation at break for ETFE?
Elongation at break is often cited around 300% depending on grade and manufacturer — always confirm on data sheets.
Does ETFE absorb water?
Water absorption is nearly zero, supporting waterproof envelope performance when detailed correctly.
What temperature range can ETFE serve?
ETFE remains serviceable across a wide range — typical guidance spans roughly -200°C to +150°C for the material, with architectural use focused on ambient climates.
Is ETFE chemically resistant?
Yes — ETFE resists many acids, alkalis, salts and environmental pollutants better than many conventional plastics.
What is the surface energy of ETFE?
Very low surface energy contributes to dust shedding and rain-wash self-cleaning behaviour, though maintenance is still project-dependent.
Can material properties vary by manufacturer?
Yes. Grade, additives, print layers and cushion build-ups all affect confirmed properties — use project-specific data sheets.
How do properties change in multi-layer cushions?
Each layer may use different gauges and roles — outer weathering, inner optical or print layers. System performance is not defined by one foil alone.
Are published tensile strength values guaranteed?
Typical tensile strength is often quoted around 40–55 MPa but must be confirmed per manufacturer and application — not a universal guarantee.
