Clear ETFE can transmit up to about 95% daylight, creating luminous interiors for sports, retail and horticultural environments.
ETFE light transmission
Optical Performance
10 min read
Updated July 2026
ETFE Light Transmission — Daylight & Visual Comfort
Up to about 95% light transmission makes ETFE a daylight engine for large spans — but clarity, diffusion and solar control come from layer strategy and frit, not film alone.
Introduction
Technical Guide
Knowledge-Backed
Understanding ETFE Light Transmission
This guide explains how clear, translucent and printed ETFE layers tune interior brightness, UV passage for horticulture, and visual comfort — with typical values only, confirmed per project.
Engineering overview
Print, frit and layer count modify transmission and glare. Optical targets must be coordinated with thermal and solar gain strategies.
Industry importance
Daylighting reduces artificial lighting demand in malls, airports and greenhouses — a core ETFE value proposition.
Engineering
Daylight, Diffusion & Solar Control Strategies
Light transmission is system-dependent — film grade, print density and cushion layers all influence results.
Detailed explanation

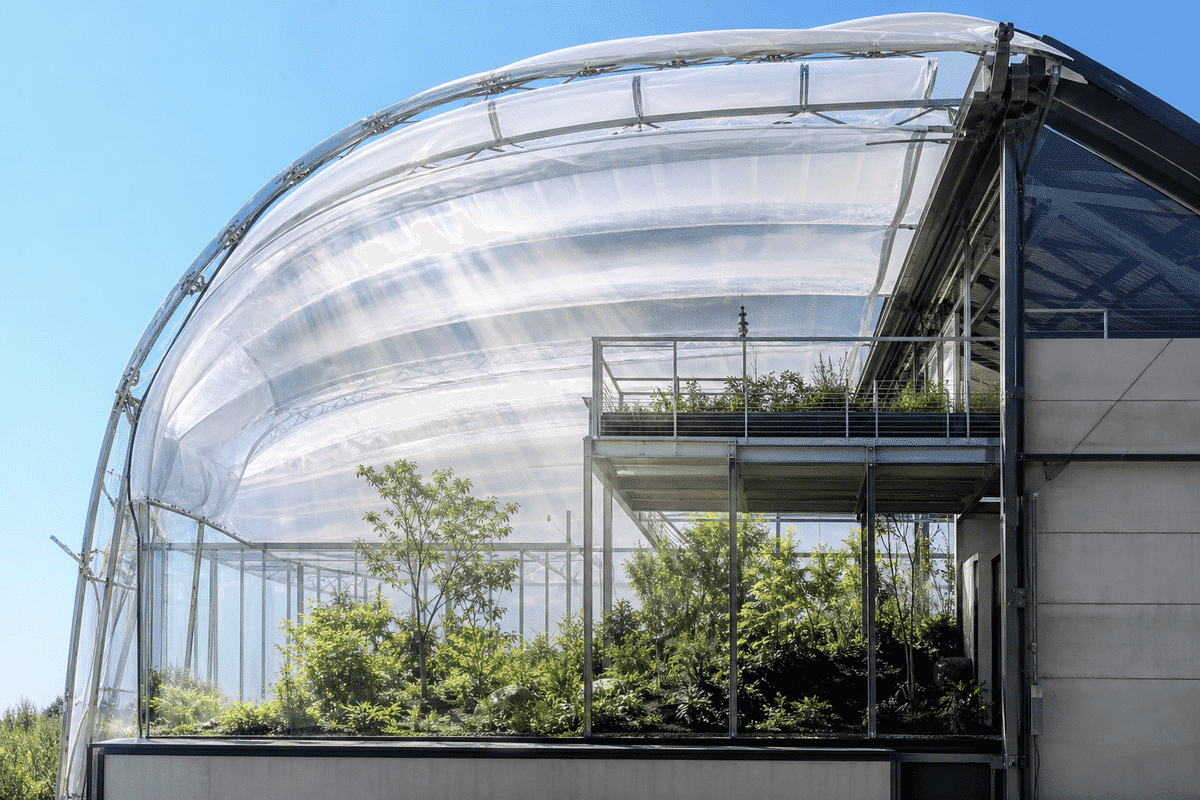

Translucent or diffused finishes soften light and improve privacy. Clear films maximise horticultural UV transmission where required.
Working principle
ETFE admits spectrally rich daylight while optional patterns manage solar gain without reverting to heavy opaque roofs.
Engineering concepts
Coordinate with MEP for cooling loads, with interior designers for glare, and with horticulturists for UV needs in greenhouses.
Specifications
Optical Transmission Parameters
Publish only values confirmed in knowledge docs. Use TBD where not approved.
| Parameter | Typical guidance | Notes |
|---|---|---|
| Topic focus | ETFE Light Transmission | Engineering guide |
| Material | ETFE fluoropolymer | System dependent |
| Typical light transmission | Up to ~95% | Clear film |
| Service life guidance | Often 25–35+ years | Maintenance dependent |
| Weather resistance | Excellent typical behaviour | Detail critical |
| Fire performance | Tested assembly specific | No generic rating |
| Structural design | Project engineered | Wind & snow inputs |
| Data confirmation | Manufacturer sheets required | Contact AAKS |
Values shown are typical or manufacturer-dependent. Confirm project-specific data sheets and tested assemblies before specification. AAKS does not publish uncertified U-values, fire ratings or warranty claims.
Design
Design Considerations
Design teams should integrate ETFE light transmission early with architecture, structure, MEP and façade consultants.
Planning
Establish performance priorities — daylight, thermal comfort, acoustics, fire, access — before fixing geometry. Early ETFE input improves cost and programme certainty.
Engineering
Load cases, foil patterning, clamp layouts and inflation schematics (if cushions) follow from planning decisions. Use verified manufacturer data for the chosen build-up.
Material selection
Film gauges, layer roles, optional print/frit and hardware alloys are selected for environmental exposure and maintainability — not generic catalogue defaults.
Installation requirements
Detailing must protect foils during construction, maintain drainage falls, and sequence inflation commissioning safely for cushion systems.
Benefits
Advantages
ETFE Light Transmission supports lighter structures, faster installation and luminous interiors when engineered correctly.
Technical
Technical performance
Strong ETFE light transmission understanding helps teams leverage ETFE's high light transmission, weather durability and flexible form-making without overclaiming uncertified numbers.
Commercial
Commercial value
Reduced steel, faster programmes and lower cleaning burden can improve lifecycle economics — subject to project-specific engineering and local costs.
Long-term
Long-term resilience
Replaceable modules, typical 25–35+ year service-life guidance and stable UV behaviour support durable architectural identity when maintained.
Constraints
Limitations & Common Mistakes
Honest constraints around ETFE light transmission prevent specification errors and unsafe assumptions.
Challenges
Acoustic rain noise, thermal targets without layer strategy, pollution in low-rain climates, and access for inspection require explicit design responses.
Design constraints
Fire ratings, thermal values and hail performance are assembly-specific — never assume one material claim covers all jurisdictions or roof types.
Common mistakes
Common mistakes: late ETFE adoption, ignoring drainage, under-specifying maintenance access, or copying thicknesses from unrelated projects.
Delivery
Installation Guidelines
Installation quality directly affects ETFE light transmission outcomes on site.
- 1
Structure readiness
Verify primary steel or cable net tolerances, fixings and interface substrates before membrane installation.
- 2
Module delivery
Receive cushions or foil panels with QA records; store protected from sharp objects and contamination.
- 3
Fixing & sealing
Install clamps, keders or frames per shop drawings; complete weather interfaces to adjacent trades.
- 4
Tension or inflation
Apply design tension to single-layer foil or inflate cushions to specified pressure under supervision.
- 5
Commissioning
Calibrate sensors, test redundancy and confirm alarm logic for inflation systems where applicable.
- 6
Handover
Deliver O&M documentation, cleaning guidance and inspection intervals aligned with this topic.
Engineering notes
Site teams must coordinate weather windows, fall protection and protection of installed foils until completion.
Best practices
Best practice: specialist installers, staged inspection of seams and clamps, and photographic records for warranty and maintenance files.
Care
Maintenance Guide
Maintenance preserves ETFE light transmission benefits across the service life of the envelope.
Inspection
Schedule visual inspections for soiling, seam integrity, clamp condition and inflation performance per O&M plan.
Cleaning
Clean when rain-wash is insufficient — use soft methods and approved detergents; avoid abrasive tools on film.
Repair
Assess punctures or loose edges promptly; modular cushions can often be repaired or replaced following protocols.
Maintenance schedule
Intervals depend on pollution, slope and access — typical reviews annually with more frequent checks after extreme weather.
Compliance
Industry Standards
Compliance for ETFE light transmission follows applicable local codes and verified system tests — AAKS supports documentation, not generic certification claims.
International standards
International material and fire test frameworks may apply depending on project jurisdiction — confirm with the engineer of record.
Codes
Structural wind and snow codes, fire regulations and accessibility requirements govern detailing alongside film selection.
Testing
Use manufacturer test reports for the specific cushion or foil assembly — not unrelated product lines.
Compliance guidance
AAKS aligns delivery with agreed specifications and provides typical guidance; certified values are issued per project when available.
Compare

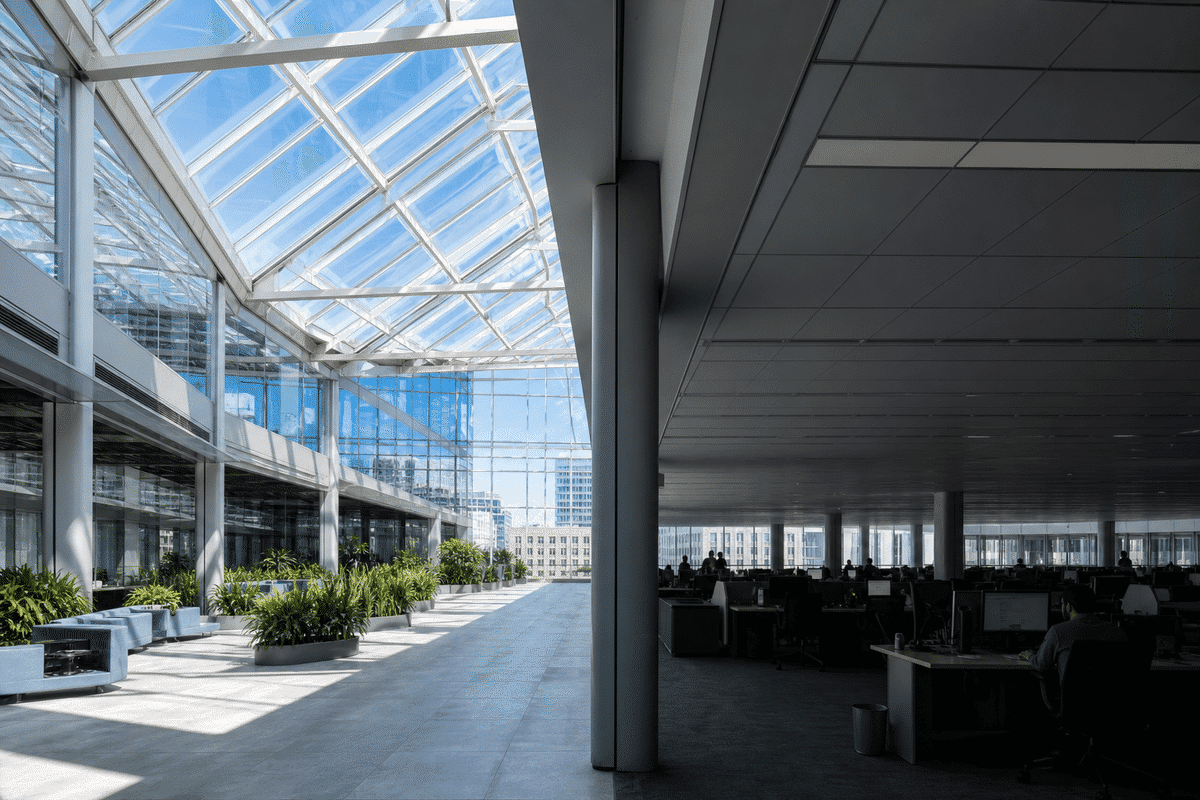

Clear ETFE vs Fritted ETFE
Qualitative comparison for ETFE light transmission — confirm project-specific test data before specification.
| Criteria | Clear ETFE | Fritted ETFE |
|---|---|---|
| Weight | Very lightweight ETFE | Heavier alternative |
| Daylight | Up to ~95% transmission | Varies by material |
| Durability | Strong UV & weather typical | Material dependent |
| Structure demand | Lower steel typical | Higher mass support |
| Maintenance | Low typical; site dependent | Varies |
| Design flexibility | Freeform cushions | More constrained |
Products
Related Products
Link only to live product pages that apply to this topic.
Sectors
Related Applications
Map to sector clusters in knowledge/INTERNAL_LINKING_RULES.md.
Case studies
Related Projects
Library
Related Technical Articles
Sibling guides — replace tokens with live article paths when published.
Insights
Related Insights
Visuals

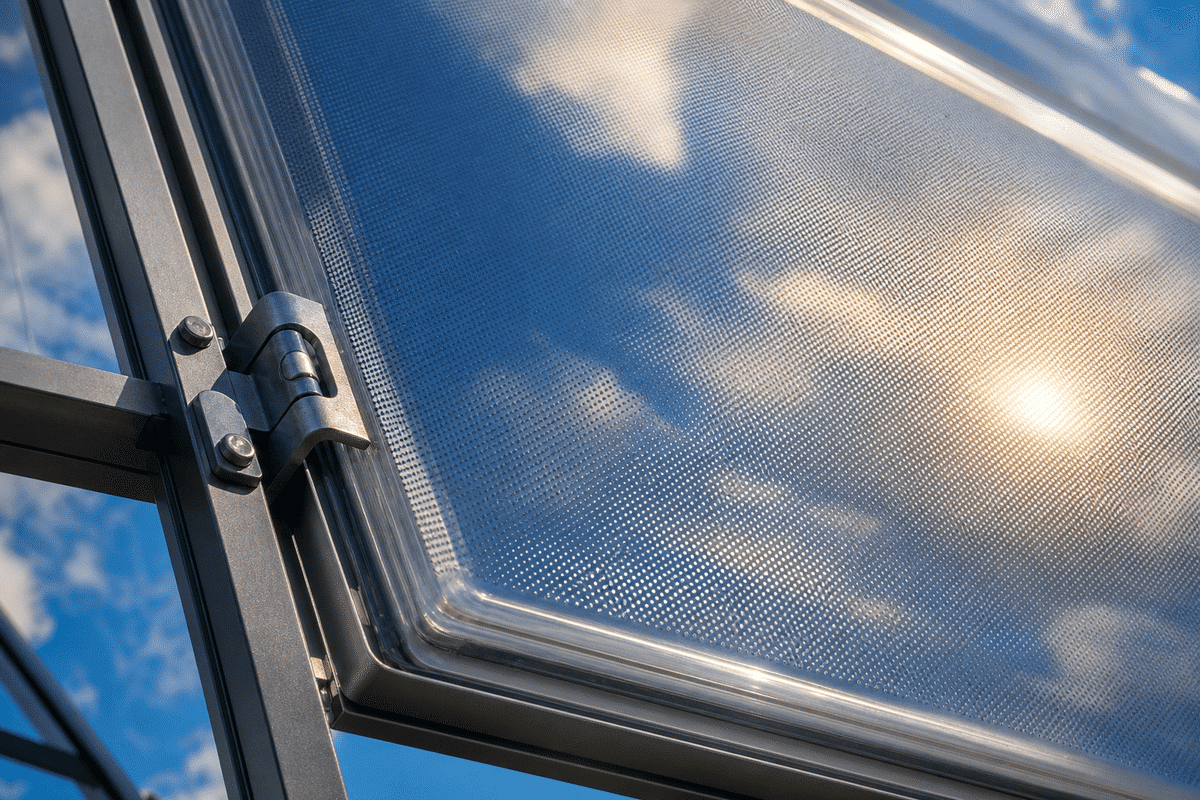

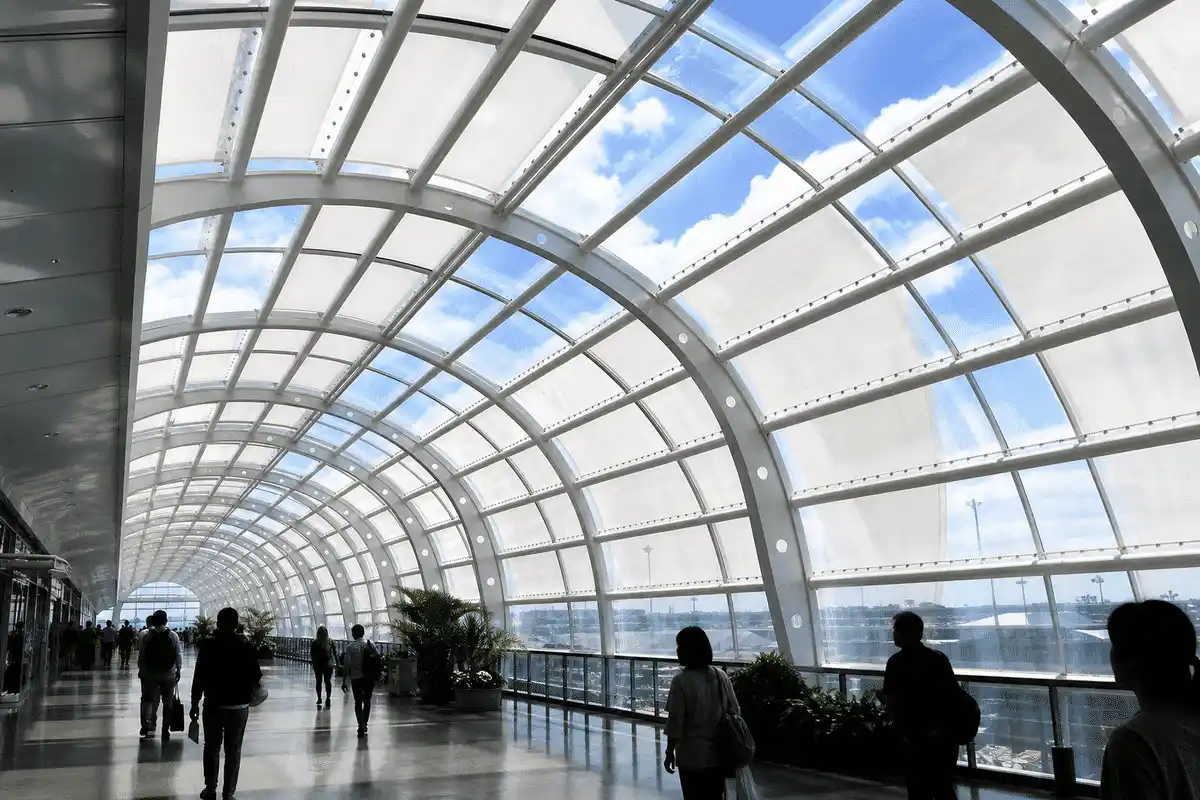

Technical Gallery
Unique visuals for this article only — do not reuse across pages.
FAQ
Frequently Asked Questions
Align answers with knowledge/FAQ.md and topic knowledge files.
How much daylight does clear ETFE transmit?
Clear architectural ETFE is often cited up to about 95% light transmission — higher than many conventional glazing options in manufacturer comparisons.
Does ETFE transmit UV light?
Yes — approximately 90–95% UV transmission is typical guidance, beneficial for greenhouse and botanical applications.
How do translucent foils differ from clear?
Translucent or diffuser layers soften light and improve privacy while reducing glare — at the cost of some direct beam transmission.
Can frit patterns control glare and solar gain?
Printed frit between or on layers manages solar heat gain and glare while preserving luminous interiors — often more impact than small gauge changes.
Do multi-layer cushions reduce light?
Each layer absorbs or scatters slightly. Overall optical design balances insulation cavities with target lux levels.
Is higher transmission always desirable?
Museums, offices and retail may need solar control or diffusion. Performance targets drive layer and print choices.
How does ETFE daylighting affect energy use?
Daylighting can reduce artificial lighting demand. Multi-layer cushions and frit help manage cooling loads alongside lighting savings.

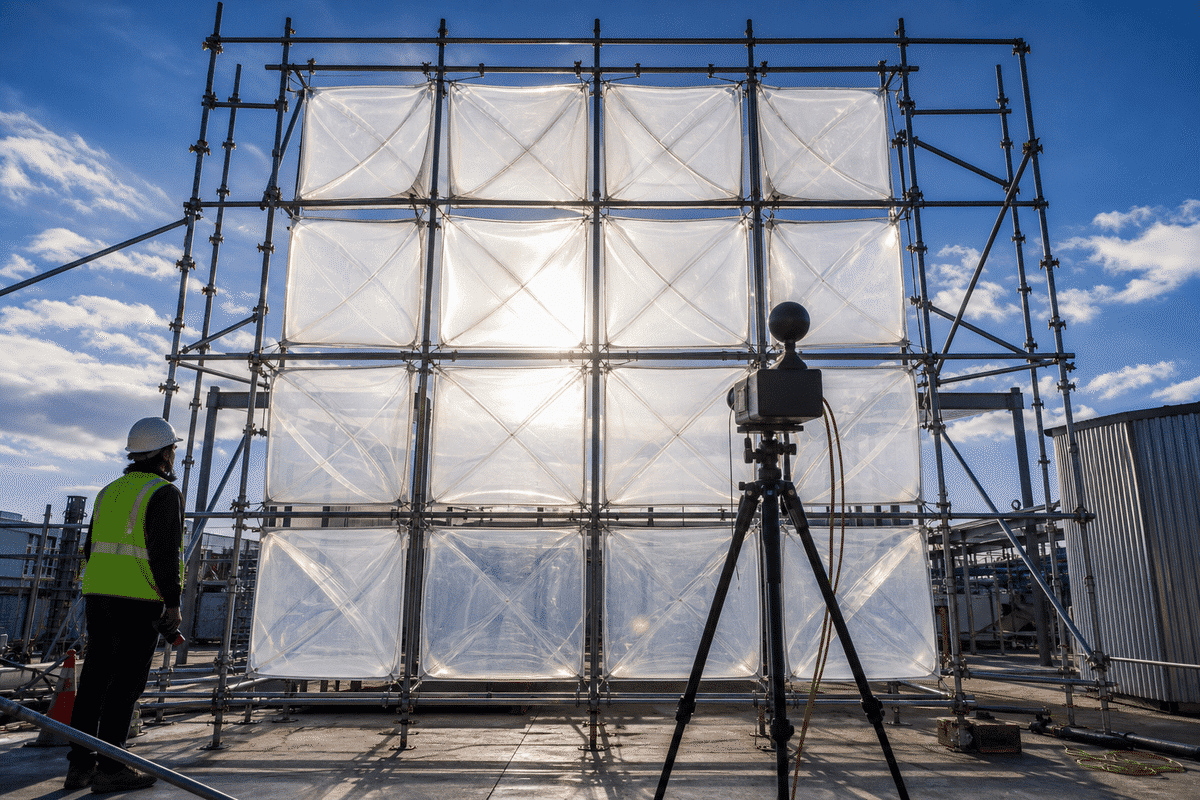

Can light transmission be verified before install?
Mock-ups and manufacturer optical data support design decisions — site-specific confirmation follows specification.
Does dirt reduce transmission?
Soiling lowers effective transmission. Self-cleaning behaviour and maintenance plans protect optical performance.

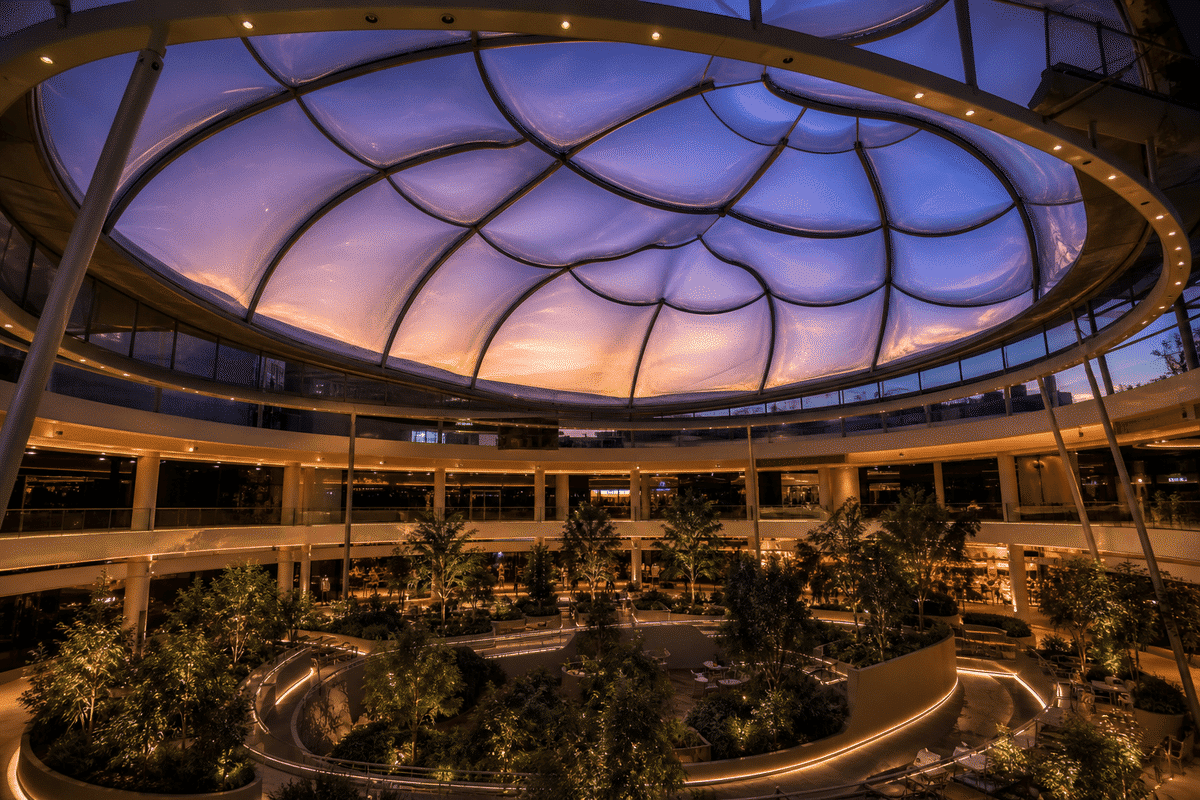

How is night appearance affected?
ETFE can glow when interior lighting is visible outward — an architectural effect planned with lighting designers.
Are transmission values guaranteed on all projects?
Values are typical and manufacturer-dependent. Confirm on data sheets for the specified build-up.
How do I specify daylight targets with AAKS?
Share use type, orientation and comfort goals via contact-us.html for layer and print recommendations.
