ETFE Air Cushion System — Multi-Layer Pneumatic Roofs
Low-pressure air turns multi-layer ETFE foils into stiff, luminous roof modules — covering cushion layers, inflation hardware and the engineering inputs that size pneumatic fields.
Introduction
Technical Guide
Knowledge-Backed

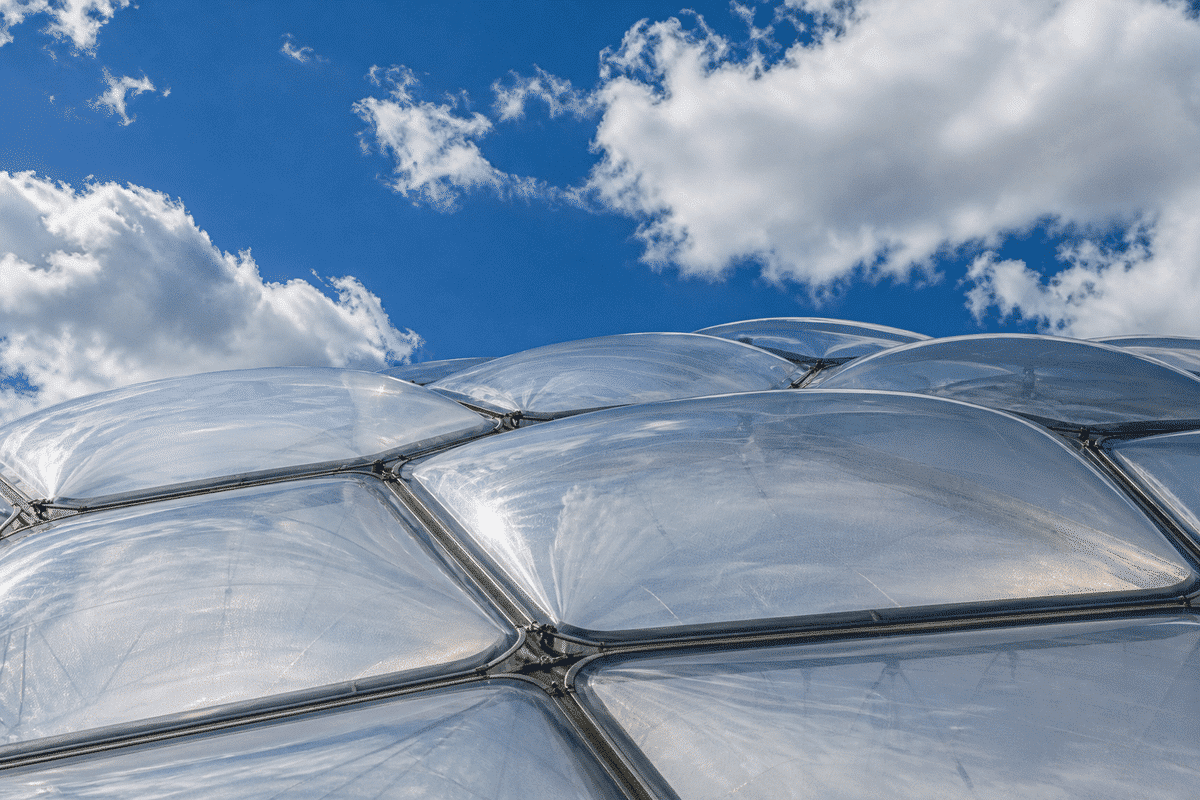

Understanding ETFE Air Cushion System
From two-layer entry cushions to five-layer performance build-ups, this guide walks through how sealed ETFE assemblies gain stiffness and thermal layering through controlled inflation, edge detailing and monitored redundancy.
Engineering overview

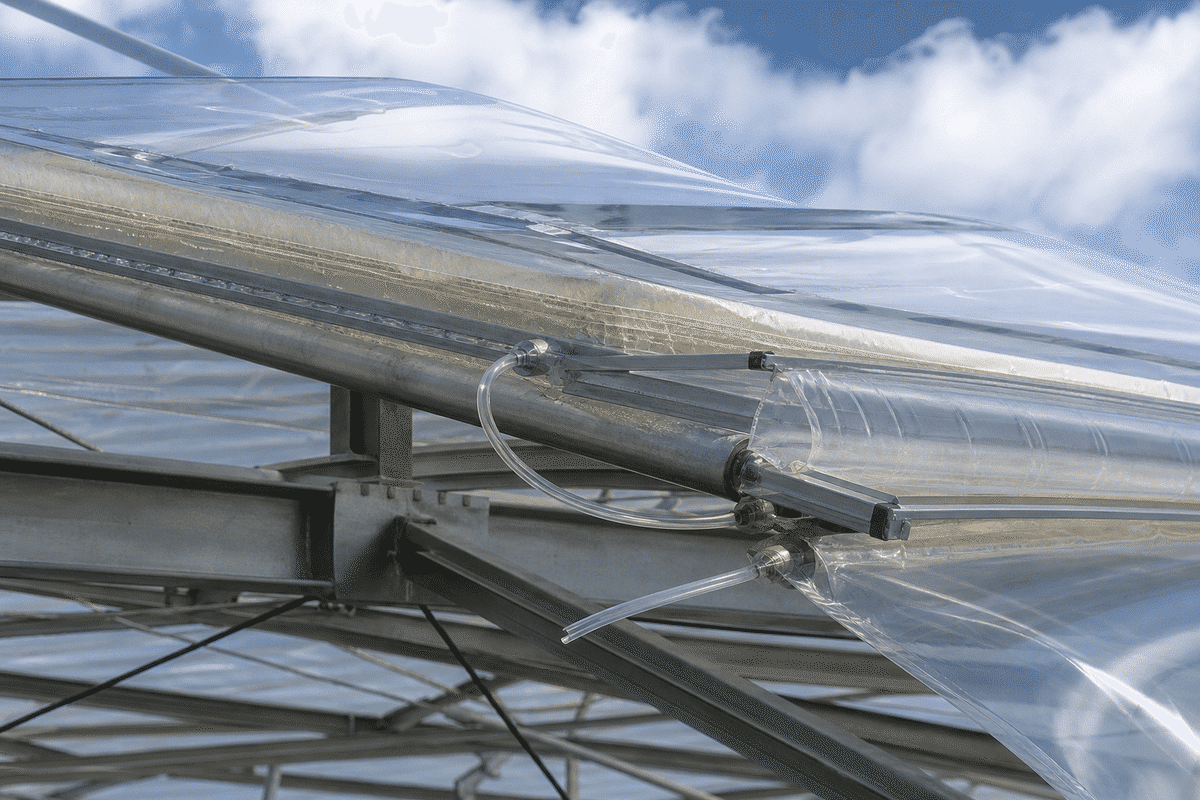

System components include ETFE foils, edge clamps, primary structure, inflation units, sensors and drainage interfaces — coordinated as one assembly.
Industry importance
Air cushion roofs are flagship solutions for airports, stadiums, shopping mall atria and convention halls requiring luminous large-span roofs.
Engineering
Pneumatic Cushion Engineering & Components
Cushions combine structural stiffness from air pressure with multi-layer thermal and optical tuning — performance is project-specific.
Detailed explanation
Typical configurations range from 2-layer entry cushions to 3-layer balanced systems and 4–5 layer higher-performance build-ups.
Working principle

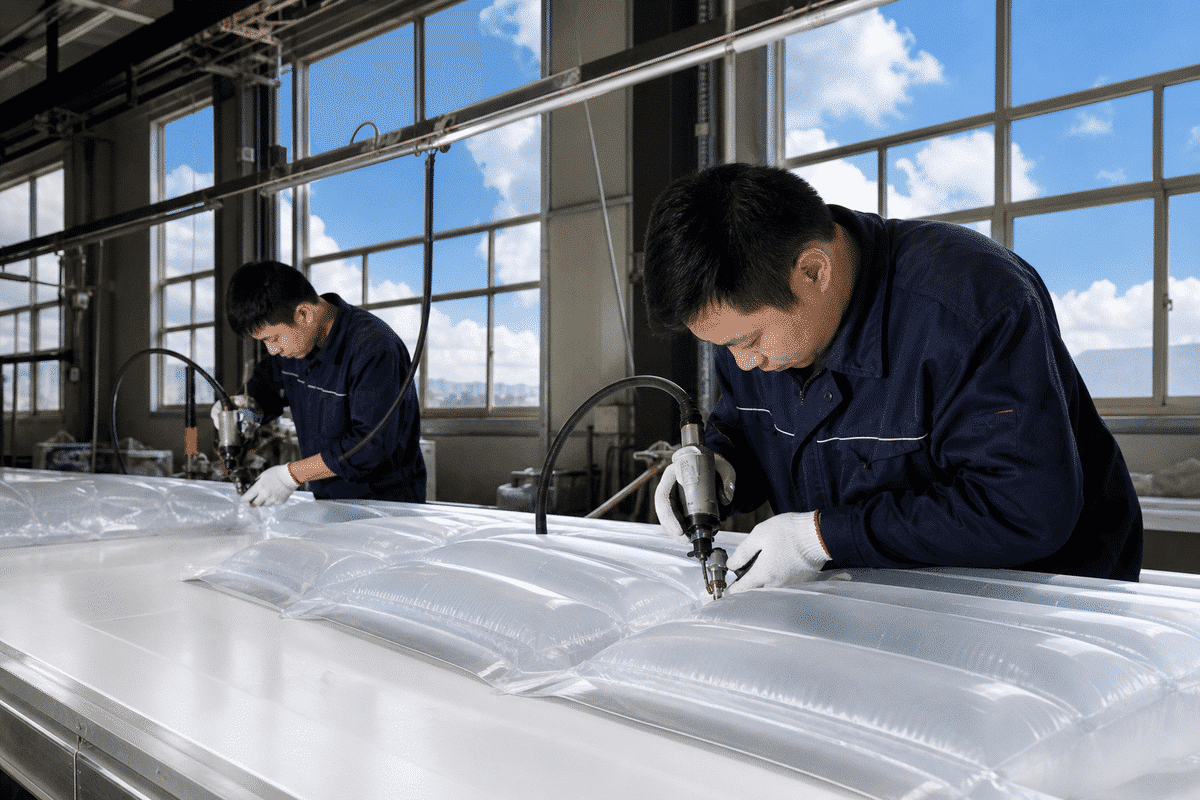

Foils are patterned, welded and installed on a grid, then inflated to design pressure. Sensors maintain operating range with redundancy logic.
Engineering concepts
Design must address wind, snow, drainage, access, acoustics, fire-tested assemblies, inflation redundancy and precise trade interfaces.
Specifications
Cushion System Parameters
Publish only values confirmed in knowledge docs. Use TBD where not approved.
| Parameter | Typical guidance | Notes |
|---|---|---|
| Typical layers | 2–5 foils | Project specific |
| Inflation | Low-pressure air | Monitored system |
| Primary structure | Steel / aluminium grid | Engineered for loads |
| Edge detail | Clamps / keder / frames | Weathertight assembly |
| Controls | Fans, sensors, redundancy | Commissioned on site |
| Thermal performance | Better than single layer | Numeric values project specific |
| Module replaceability | Cushion modules | Access strategy required |
| Typical sectors | Airport, stadium, mall | Large-span daylight |
Values shown are typical or manufacturer-dependent. Confirm project-specific data sheets and tested assemblies before specification. AAKS does not publish uncertified U-values, fire ratings or warranty claims.
Design
Design Considerations
Design teams should integrate ETFE air cushion system early with architecture, structure, MEP and façade consultants.
Planning
Establish performance priorities — daylight, thermal comfort, acoustics, fire, access — before fixing geometry. Early ETFE input improves cost and programme certainty.
Engineering
Load cases, foil patterning, clamp layouts and inflation schematics (if cushions) follow from planning decisions. Use verified manufacturer data for the chosen build-up.
Material selection
Film gauges, layer roles, optional print/frit and hardware alloys are selected for environmental exposure and maintainability — not generic catalogue defaults.
Installation requirements
Detailing must protect foils during construction, maintain drainage falls, and sequence inflation commissioning safely for cushion systems.
Benefits
Advantages
ETFE Air Cushion System supports lighter structures, faster installation and luminous interiors when engineered correctly.
Technical
Technical performance
Strong ETFE air cushion system understanding helps teams leverage ETFE's high light transmission, weather durability and flexible form-making without overclaiming uncertified numbers.
Commercial
Commercial value
Reduced steel, faster programmes and lower cleaning burden can improve lifecycle economics — subject to project-specific engineering and local costs.
Long-term
Long-term resilience
Replaceable modules, typical 25–35+ year service-life guidance and stable UV behaviour support durable architectural identity when maintained.
Constraints
Limitations & Common Mistakes
Honest constraints around ETFE air cushion system prevent specification errors and unsafe assumptions.
Challenges
Acoustic rain noise, thermal targets without layer strategy, pollution in low-rain climates, and access for inspection require explicit design responses.
Design constraints
Fire ratings, thermal values and hail performance are assembly-specific — never assume one material claim covers all jurisdictions or roof types.
Common mistakes
Common mistakes: late ETFE adoption, ignoring drainage, under-specifying maintenance access, or copying thicknesses from unrelated projects.
Delivery
Installation Guidelines
Installation quality directly affects ETFE air cushion system outcomes on site.
- 1
Structure readiness
Verify primary steel or cable net tolerances, fixings and interface substrates before membrane installation.
- 2
Module delivery
Receive cushions or foil panels with QA records; store protected from sharp objects and contamination.
- 3
Fixing & sealing
Install clamps, keders or frames per shop drawings; complete weather interfaces to adjacent trades.
- 4
Tension or inflation
Apply design tension to single-layer foil or inflate cushions to specified pressure under supervision.
- 5
Commissioning
Calibrate sensors, test redundancy and confirm alarm logic for inflation systems where applicable.
- 6
Handover
Deliver O&M documentation, cleaning guidance and inspection intervals aligned with this topic.
Engineering notes
Site teams must coordinate weather windows, fall protection and protection of installed foils until completion.
Best practices
Best practice: specialist installers, staged inspection of seams and clamps, and photographic records for warranty and maintenance files.
Care
Maintenance Guide
Maintenance preserves ETFE air cushion system benefits across the service life of the envelope.
Inspection
Schedule visual inspections for soiling, seam integrity, clamp condition and inflation performance per O&M plan.
Cleaning
Clean when rain-wash is insufficient — use soft methods and approved detergents; avoid abrasive tools on film.
Repair
Assess punctures or loose edges promptly; modular cushions can often be repaired or replaced following protocols.
Maintenance schedule
Intervals depend on pollution, slope and access — typical reviews annually with more frequent checks after extreme weather.
Compliance
Industry Standards
Compliance for ETFE air cushion system follows applicable local codes and verified system tests — AAKS supports documentation, not generic certification claims.
International standards
International material and fire test frameworks may apply depending on project jurisdiction — confirm with the engineer of record.
Codes
Structural wind and snow codes, fire regulations and accessibility requirements govern detailing alongside film selection.
Testing
Use manufacturer test reports for the specific cushion or foil assembly — not unrelated product lines.
Compliance guidance
AAKS aligns delivery with agreed specifications and provides typical guidance; certified values are issued per project when available.
Compare

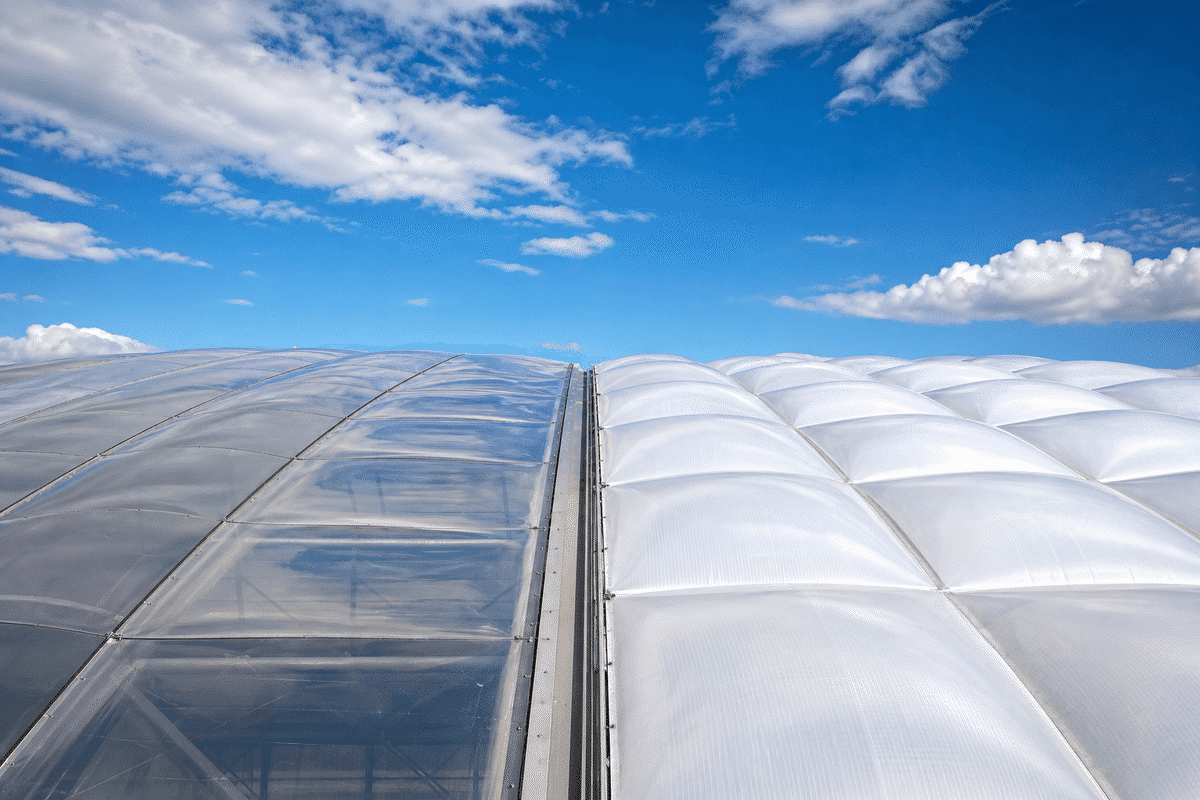

Air cushion roof vs Single-layer ETFE
Qualitative comparison for ETFE air cushion system — confirm project-specific test data before specification.
| Criteria | Air cushion roof | Single-layer ETFE |
|---|---|---|
| Weight | Very lightweight ETFE | Heavier alternative |
| Daylight | Up to ~95% transmission | Varies by material |
| Durability | Strong UV & weather typical | Material dependent |
| Structure demand | Lower steel typical | Higher mass support |
| Maintenance | Low typical; site dependent | Varies |
| Design flexibility | Freeform cushions | More constrained |
Products
Related Products
Link only to live product pages that apply to this topic.
Sectors
Related Applications
Map to sector clusters in knowledge/INTERNAL_LINKING_RULES.md.
Case studies
Related Projects
Library
Related Technical Articles
Sibling guides — replace tokens with live article paths when published.
Insights
Related Insights
Visuals

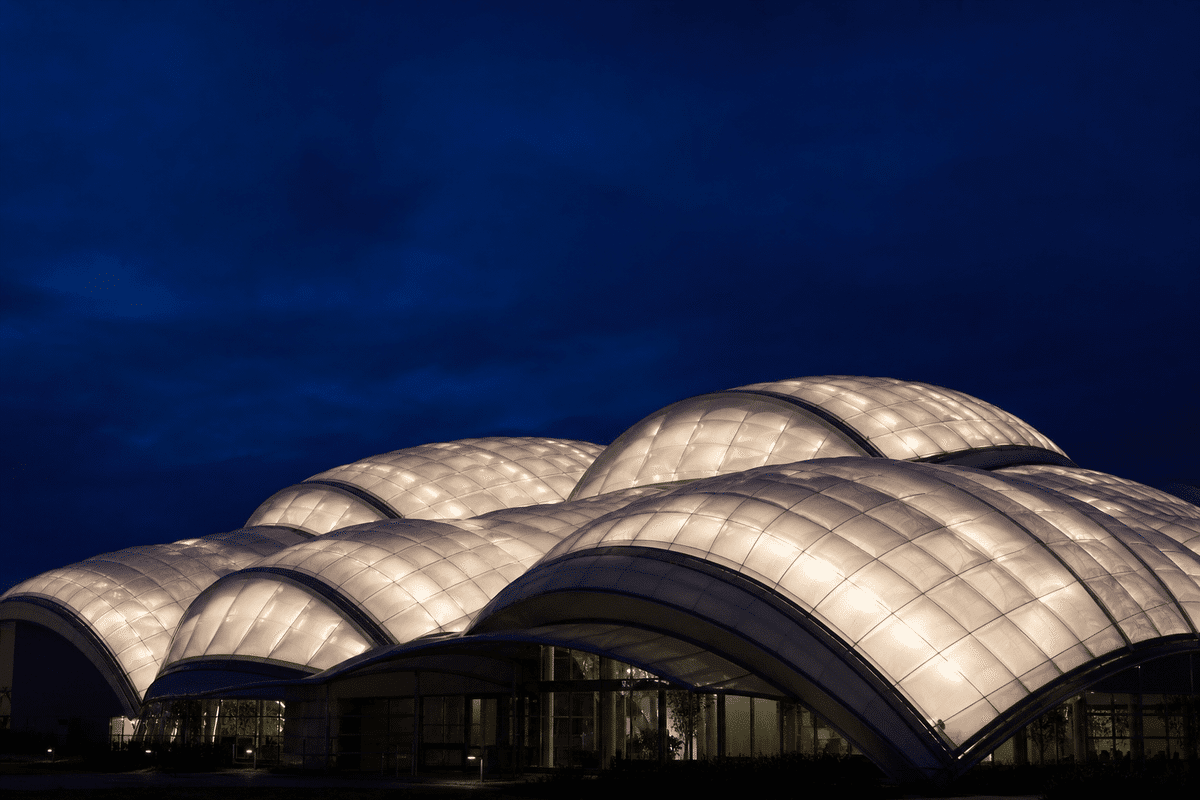

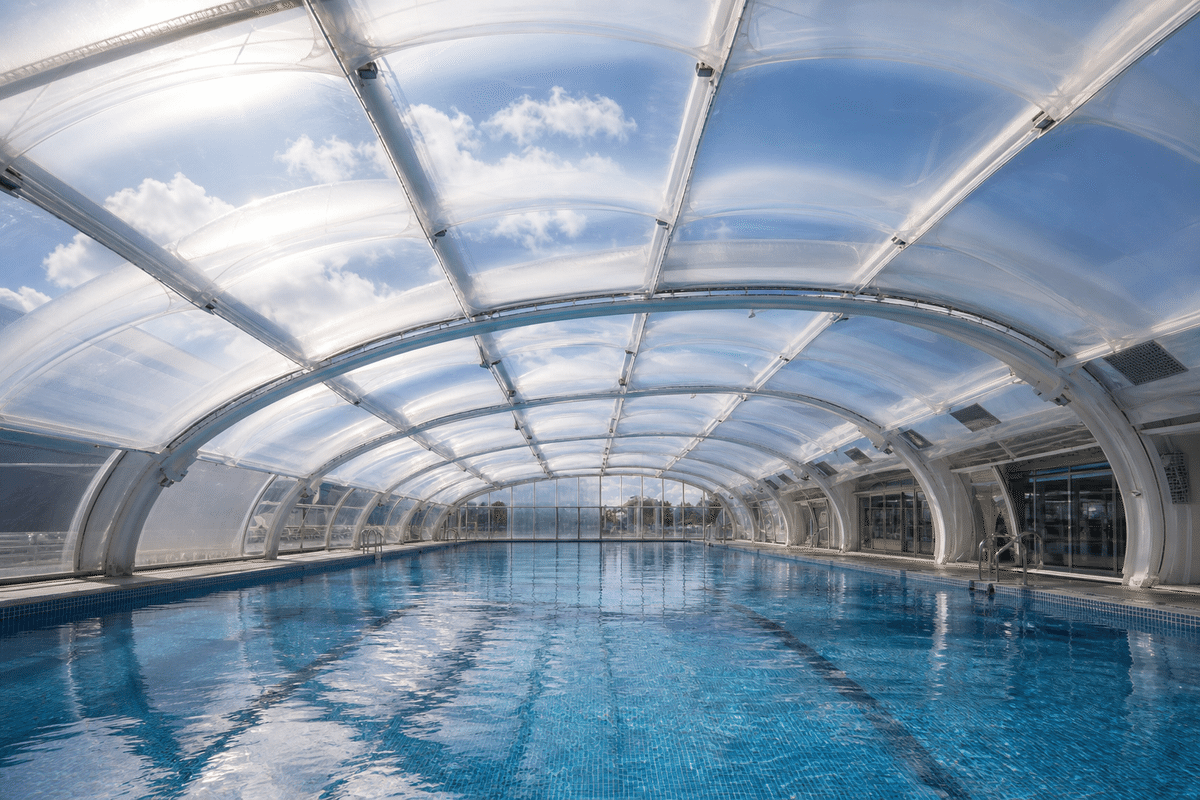

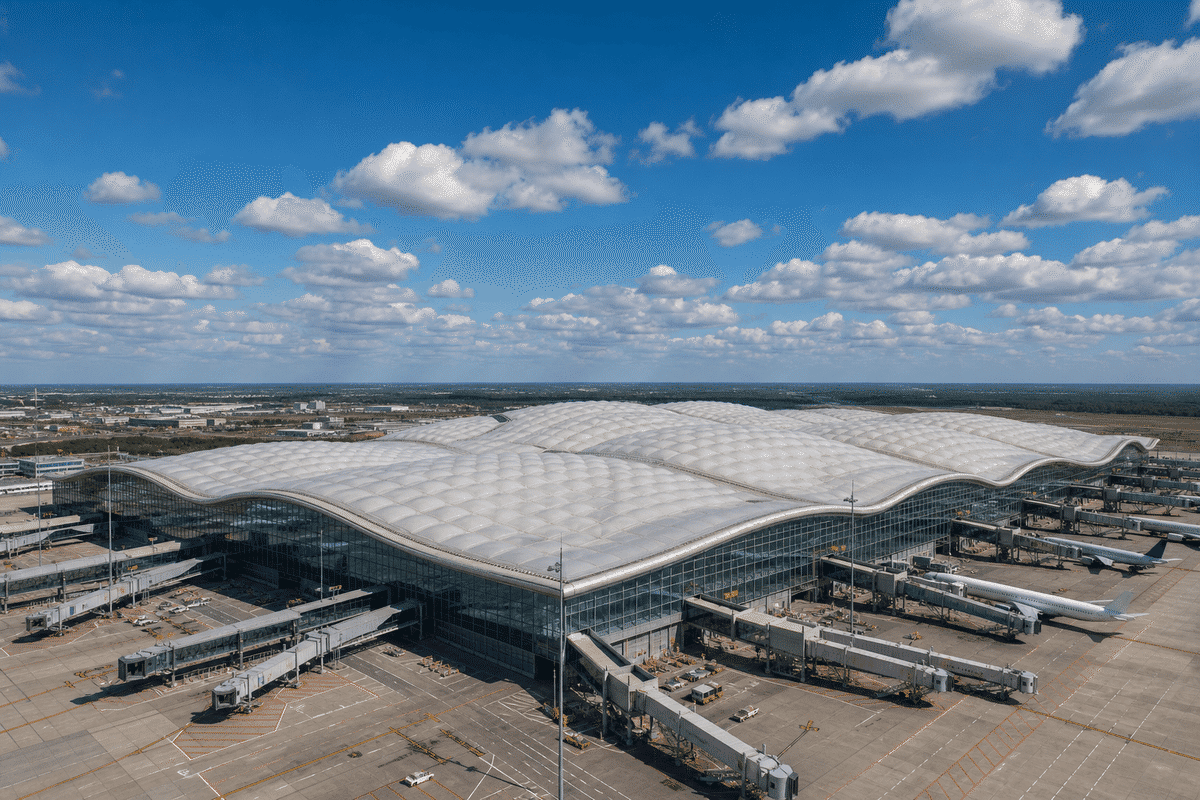

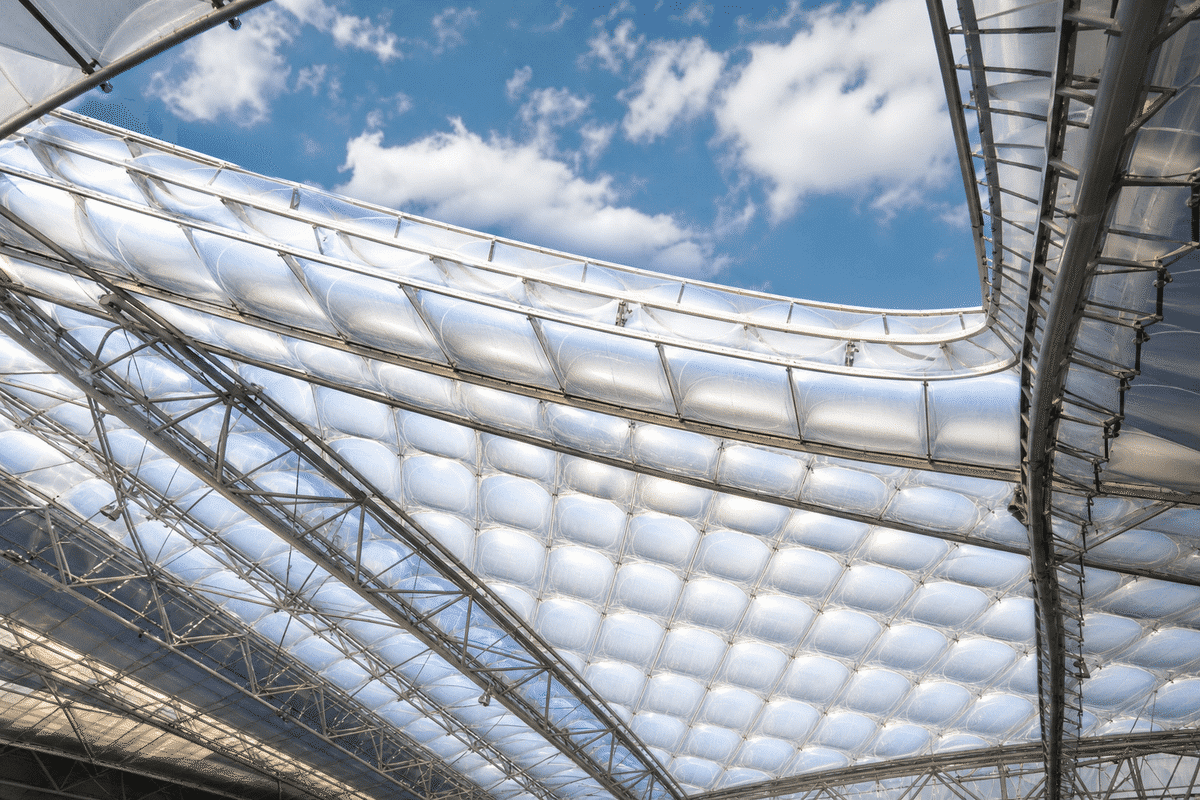

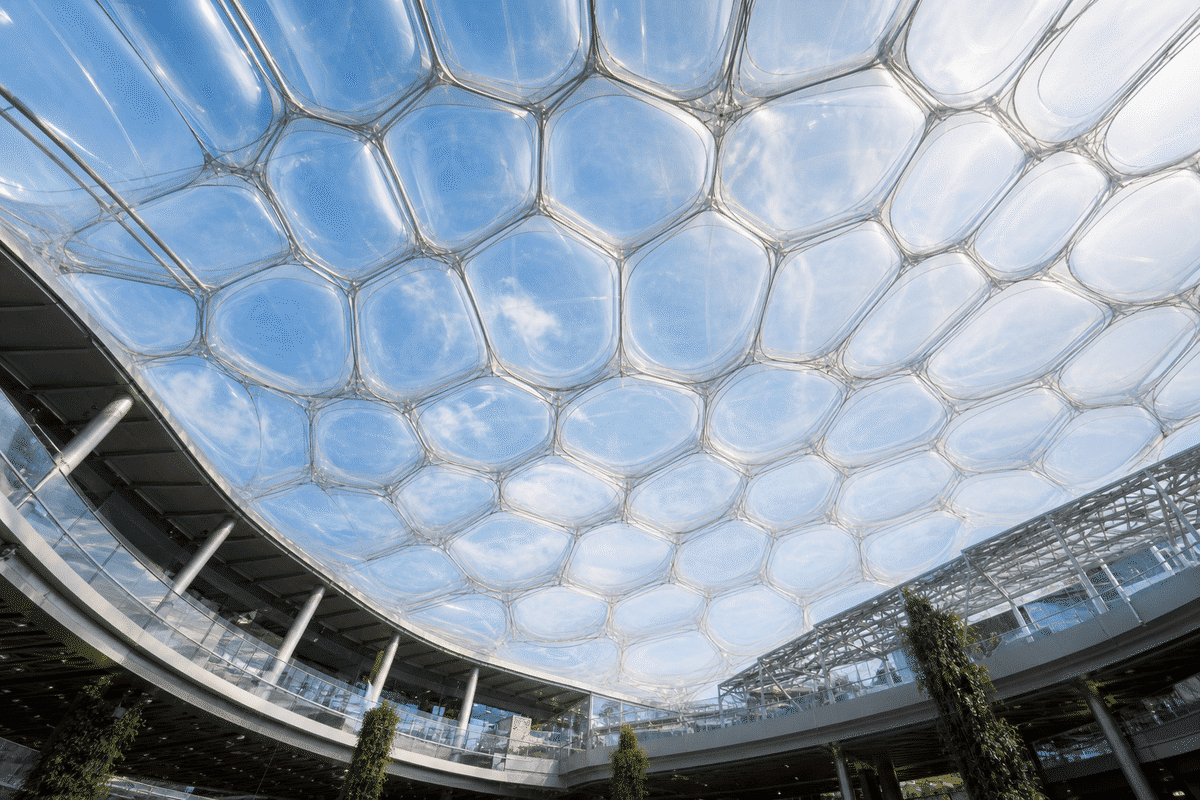

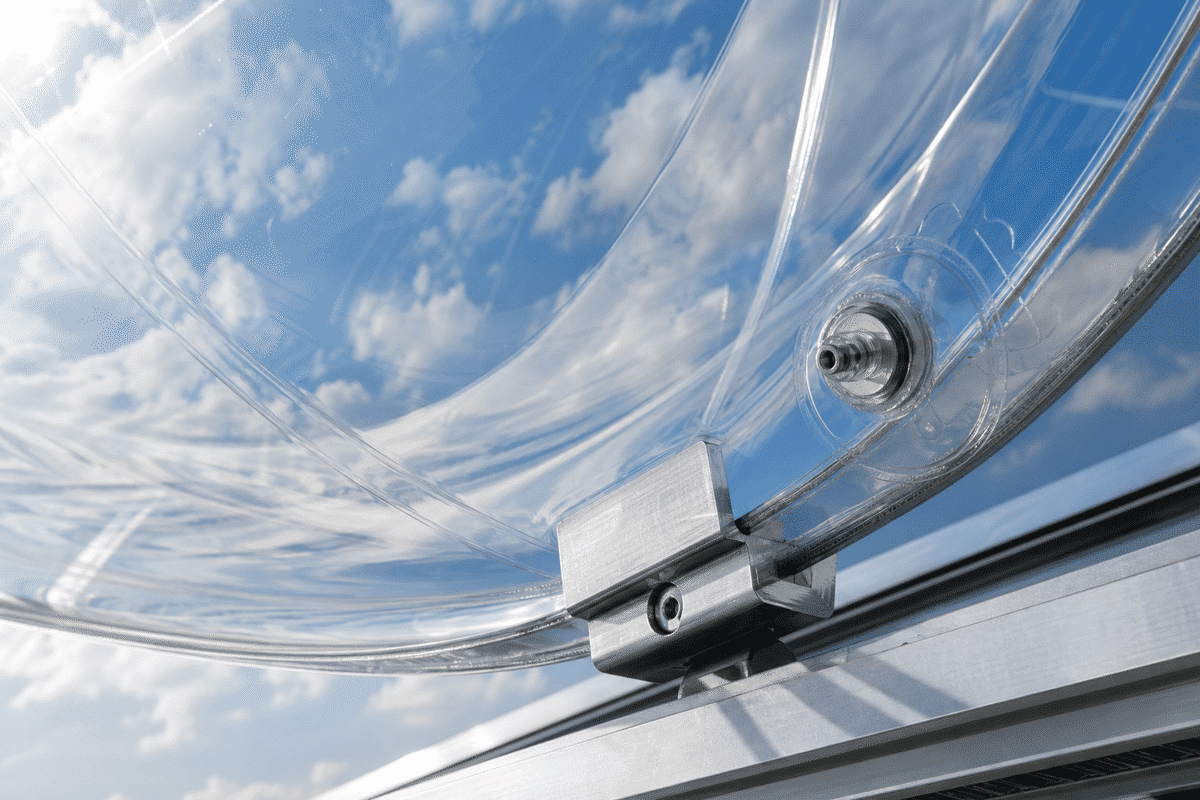

Technical Gallery
Unique visuals for this article only — do not reuse across pages.
FAQ
Frequently Asked Questions
Align answers with knowledge/FAQ.md and topic knowledge files.
What is an ETFE air cushion system?
A multi-layer ETFE assembly sealed at the edges and inflated with low-pressure air, creating stiffness, insulation cavities and a luminous lightweight roof module.
How many layers are typical?
Two to five layers are common depending on thermal targets — 3-layer cushions are a frequent performance balance.
What components make up the system?
ETFE foils, edge clamps or frames, primary structure, inflation units, controls, sensors and weather interfaces.
Do cushions need continuous power?
Inflation systems maintain design pressure with monitoring and redundancy — power strategy is defined in project design.
Can one cushion fail without losing the whole roof?
Modular cushion fields allow localized assessment and replacement when access and spares are planned.
How is cushion pressure controlled?
Fans, ducts, valves and sensors maintain pressure within an engineered operating range.
Is thermal performance guaranteed by layer count alone?
No. Insulation performance is project-specific — layer count helps but verified system data is required for claims.
Where are air cushions most used?
Airports, stadiums, mall atria, convention halls, pools and large commercial skylight fields.
How does inflation commissioning work?
After installation, cushions are inflated to design pressure, sensors calibrated and redundancy tested before handover.
What maintenance do cushions need?
Periodic inspection of pressure, seams, clamps and soiling — see our maintenance guide for detail.
Can cushions include printed solar control?
Yes — frit patterns between or on layers manage solar gain while preserving daylight quality.
How do I specify an air cushion roof?
Share span, climate and performance targets with AAKS for system recommendation and quotation.
